Steering wheel column adjustment,electr. for BMW 5 Series E39 528i (2000)

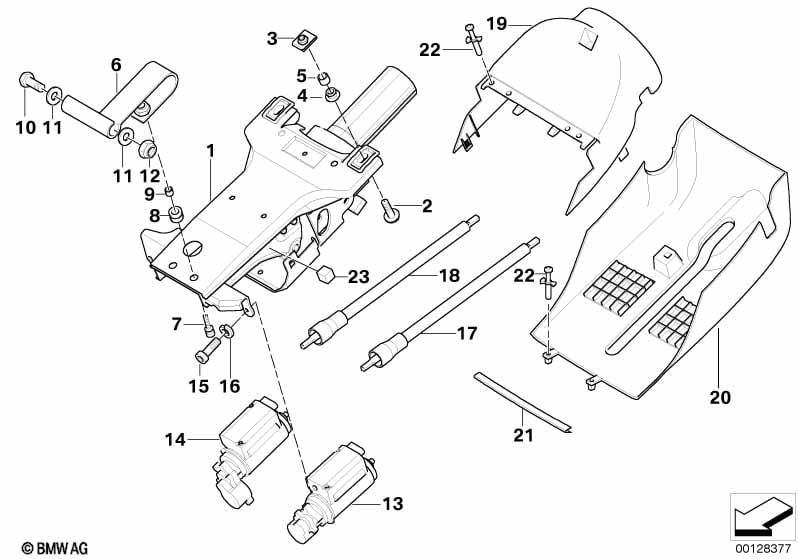

This Steering wheel column adjustment,electr. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support.bracket w/steering column tube | 1 | 32311094266 | $677.48 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X25-Z2-8.8 | 2 | 07119904368 | $0.96 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 03 | Fixing clamp | 2 | 32311092889 | $8.83 | Shop at ECS Tuning | |||||
| 04 | Guide bush | 2 | 32311159028 | $1.43 | Shop at ECS Tuning | |||||
| 05 | Spacer tube | 2 | 32311160881 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Fracture bolt | 1 | 32311093570 | $1.83 | Shop at ECS Tuning | |||||
| 08 | Guide bush | 1 | 32311111185 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spacer tube | 1 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X90-8.8-ZNS | 1 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Transmission steering column adjusting | 1 | 32311161381 | $302.81 | Shop at ECS Tuning | |||||
| 13 | Transmission,strng column horiz.adjustm | 1 | 67646903945 | $249.97 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 13 | Transmission,strng column horiz.adjustm | 1 | 67646903945 | $249.97 | Shop at ECS Tuning | |||||
| 14 | Transmission steering column adjusting | 1 | 32311161381 | $302.81 | Shop at ECS Tuning | |||||
| 14 | Transmission,strng column vertic.adjustm | 1 | 67646903946 | $249.97 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 14 | Transmission,strng column vertic.adjustm | 1 | 67646903946 | $249.97 | Shop at ECS Tuning | |||||
| 15 | Fillister-head screw | M5X25-8.8-ZNS | 1 | 07119919959 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Shaft longitudinal adjusting | 1 | 32311159013 | $18.17 | Shop at ECS Tuning | |||||
| 18 | Shaft vertical adjusting | 1 | 32316760684 | $18.17 | Shop at ECS Tuning | |||||
| 19 | Trim panel upper part | 1 | 03/1999 | 32311095635 | $90.32 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 20 | Lower trim panel | 1 | 03/1999 | 32311095784 | Shop at ECS Tuning | |||||
| 22 | Clamp | 2 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 23 | Spacer | 25X25X24MM | 1 | 51438204235 | $0.91 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
