Steering lock/ignition switch for BMW 5 Series E39 530i (2002)

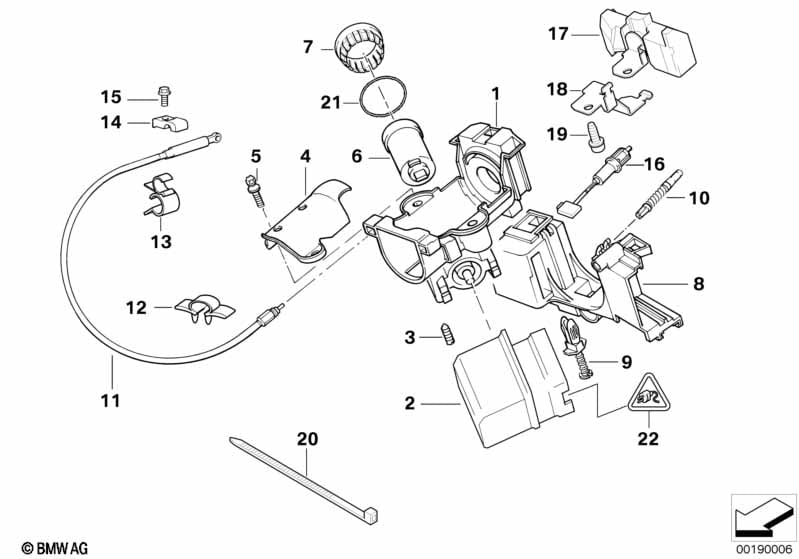

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interlock steering lock | 1 | 32321095824 | $110.60 | Shop at ECS Tuning | |||||
| 02 | Ignition switch | 1 | 61326901961 | $80.19 | Shop at ECS Tuning | |||||
| 03 | Grub screw | 2 | 32301159449 | $2.57 | Shop at ECS Tuning | |||||
| 04 | Pipe clamp | 1 | 32311162911 | $6.05 | Shop at ECS Tuning | |||||
| 05 | Fracture bolt | 2 | 32311157967 | $1.64 | Shop at ECS Tuning | |||||
| 06 | Lock (with key code) | 1 | 09/1998 | 32321095822 | Shop at ECS Tuning | |||||
| 07 | Ring antenna | EWS III | 1 | 61356964556 | $7.92 | Shop at ECS Tuning | ||||
| 11 | Interlock cable | 1 | 32311161865 | $32.22 | Shop at ECS Tuning | |||||
| 12 | Cable holder | D=12,8MM | 1 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Interlock cable bracket | 1 | 32311160323 | $2.70 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6 | 1 | 32311160657 | $0.83 | Shop at ECS Tuning | ||||
| 17 | Vibration absorber | 1 | 32311093829 | $61.81 | +core | Shop at ECS Tuning | ||||
| 18 | Cable holder | 1 | 32301094173 | $3.83 | Shop at ECS Tuning | |||||
| 19 | Torx screw | M6X20 | 1 | 61136782253 | $0.30 | Shop at ECS Tuning | ||||
| 20 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 21 | O-ring | 1 | 32321094182 | $0.68 | Shop at ECS Tuning | |||||
| 22 | Plug housing | INTERNE NUMMER | 1 | 61131393790 | $5.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 0,5-1,0MM² | 1 | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
