Airbag sports steering wheel 2 for BMW 3 Series E36 325i (1996)

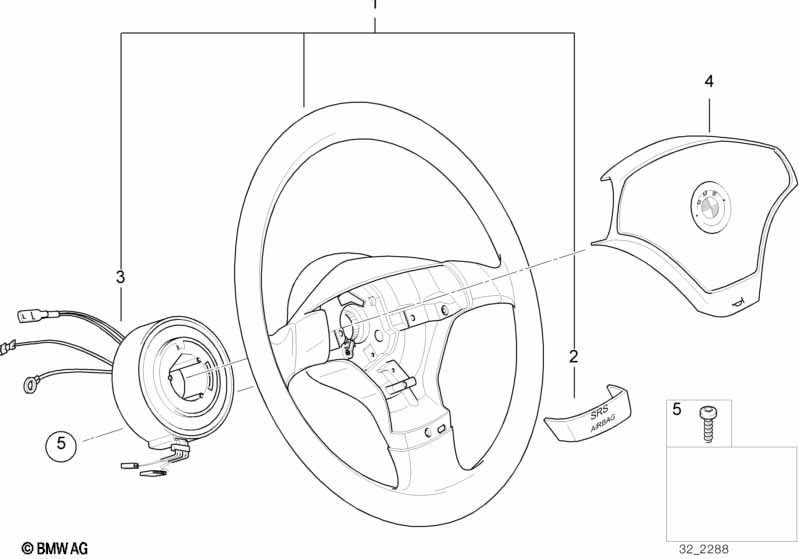

This Airbag sports steering wheel 2 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sports st.-wheel leather airbag 2 | SCHWARZ | 1 | 09/1994 | 32341092050 | $368.95 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | SCHWARZ | 1 | 09/1994 | 32341162189 | $1.53 | Shop at ECS Tuning | |||
| 03 | Slip ring | 4-POLIG | 1 | 09/1994 | 32341162111 | $174.45 | Shop at ECS Tuning | |||
| 04 | Hub cap, airbag | 1 | 09/1994 | 32341092762 | $730.91 | Shop at ECS Tuning | ||||
| 05 | Torx screw | M6X15 8.8 T30 | 1 | 32341097110 | $1.41 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i Airbag sports steering wheel 2?
- This technical diagram illustrates the Airbag sports steering wheel 2 within the Steering group for the 3 Series E36 325i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Sports st.-wheel leather airbag 2 (Part #32341092050).
- Which models use the hardware listed in this Airbag sports steering wheel 2?
- The hardware and components featured in the Airbag sports steering wheel 2 are specific to the 3 Series E36 325i produced during 1996. These technical specifications ensure that parts like the Sports st.-wheel leather airbag 2 (32341092050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag sports steering wheel 2 assembly?
- Each item in the Airbag sports steering wheel 2 corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Sports st.-wheel leather airbag 2 by locating its position on the schematic, which then links to the official BMW part number 32341092050 for the Steering section.
