Hydro steering-oil pipes for BMW 3 Series E36 325tds (1999)

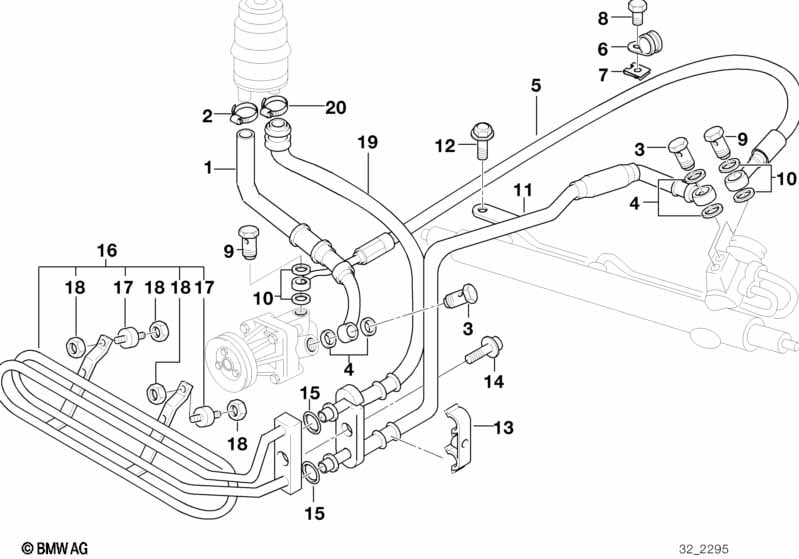

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 09/1996 | 32411093466 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=20,9-24,1 | 2 | 09/1996 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 02 | Hose clamp | D=20,9-24,1 | 1 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Hollow bolt | M16X28 | 1 | 09/1996 | 32416852470 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A16X22-CUSN | 2 | 09/1996 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 05 | Pressure hose assy | 1 | 09/1996 | 32411093294 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | D=7,65MM | 1 | 09/1996 | 64508390601 | $1.93 | Shop at ECS Tuning | |||
| 06 | Clamp | D=10/6,4 | 1 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Nut holder | M6 | 1 | 52532303110 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hollow bolt | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=7,65MM | 4 | 09/1996 | 64508390601 | $1.93 | Shop at ECS Tuning | |||
| 11 | Return pipe | 1 | 32411091748 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Return pipe bracket | 1 | 32411141750 | Shop at ECS Tuning | ||||||
| 14 | Fillister head with washer | M8X30-Z3-8.8-ZN | 1 | 07119920137 | $0.62 | Shop at ECS Tuning | ||||
| 15 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 16 | Cooling coil | 1 | 32411093376 | ENDED | Shop at ECS Tuning | |||||
| 17 | Rubber buffer | 2 | 64119175671 | $4.25 | Shop at ECS Tuning | |||||
| 18 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Return pipe | 1 | 32411091766 | Shop at ECS Tuning | ||||||
| 20 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
