Hydro steering-vane pump/mounting for BMW 3 Series E36 325tds (1999)

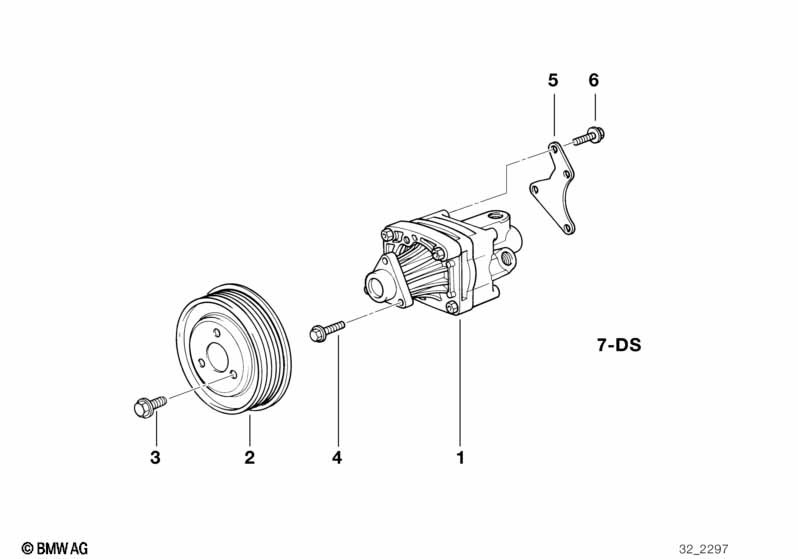

This Hydro steering-vane pump/mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power steering pump | 1 | 09/1996 | 32411092817 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Power steering pump | 1 | 09/1996 | 32411094089 | $347.08 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Pulley | 1 | 32412243683 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X12-Z3-1 | 3 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Support plate | 1 | 32422243628 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Gasket set vane pump | ZF | 1 | 32411135880 | $41.08 | Shop at ECS Tuning |
