Oil carrier / Single parts for BMW 5 Series E39 520i (2003)

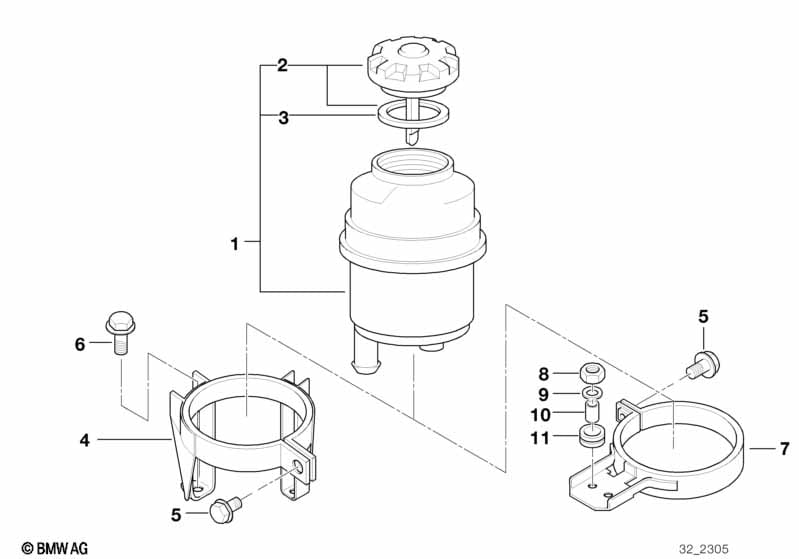

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | CHF 11.S | 1 | 32416851217 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Label, oil container-power steering pump | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 02 | Cover | CHF 11.S | 1 | 32416851332 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Label, oil container-power steering pump | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | 1 | 32411128333 | $2.38 | Shop at ECS Tuning | |||||
| 04 | Bracket, oil carrier | 1 | 32411092940 | $8.52 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
