Steer.col.-lower joint assy for BMW 5 Series E39 530i (2002)

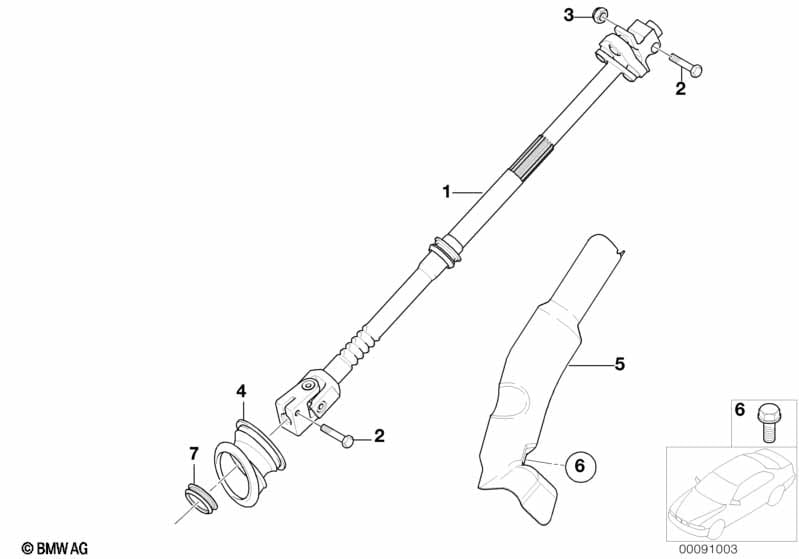

This Steer.col.-lower joint assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lower joint assy | 1 | 32316753800 | $326.70 | Shop at ECS Tuning | |||||
| 02 | Hex-head screw | M8X38 | 2 | 32306780704 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Cup | 1 | 32311161625 | $9.35 | Shop at ECS Tuning | |||||
| 07 | Plastic ring | 1 | 32316759546 | $10.59 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530i Steer.col.-lower joint assy?
- This technical diagram illustrates the Steer.col.-lower joint assy within the Steering group for the 5 Series E39 530i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Lower joint assy (Part #32316753800).
- Which models use the hardware listed in this Steer.col.-lower joint assy?
- The hardware and components featured in the Steer.col.-lower joint assy are specific to the 5 Series E39 530i produced during 2002. These technical specifications ensure that parts like the Lower joint assy (32316753800) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steer.col.-lower joint assy assembly?
- Each item in the Steer.col.-lower joint assy corresponds to the numbered list below the illustration. For the 5 Series E39 530i, you can identify the Lower joint assy by locating its position on the schematic, which then links to the official BMW part number 32316753800 for the Steering section.
