Hydro steering-oil pipes for BMW 3 Series E36 318is (1999)

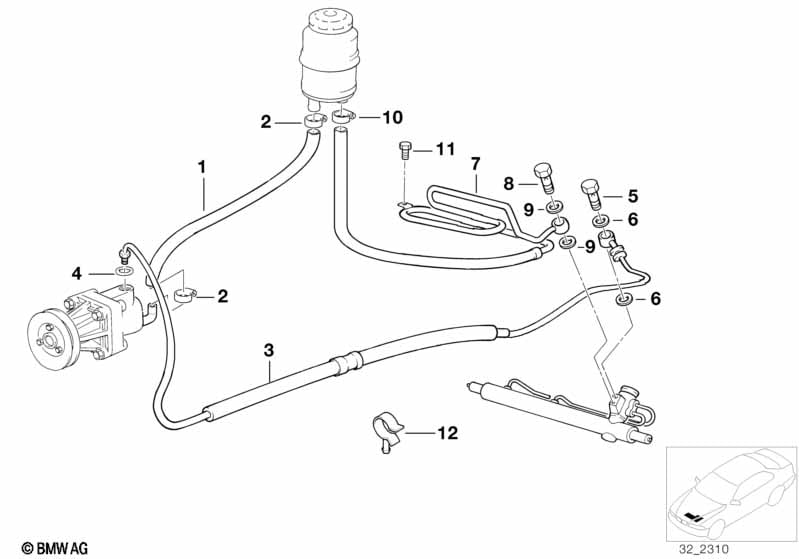

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 32411092982 | $32.68 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L18-24 | 2 | 09/1995 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 03 | Pressure hose assy | 1 | 02/1998 | 32411095068 | $182.85 | +core | Shop at ECS Tuning | |||
| 04 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 07 | Return pipe | 1 | 32411093138 | $61.05 | Shop at ECS Tuning | |||||
| 08 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X12-Z1 | 1 | 07119915017 | $0.36 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
