Hydro steering-oil pipes for BMW 3 Series E36 320i (1999)

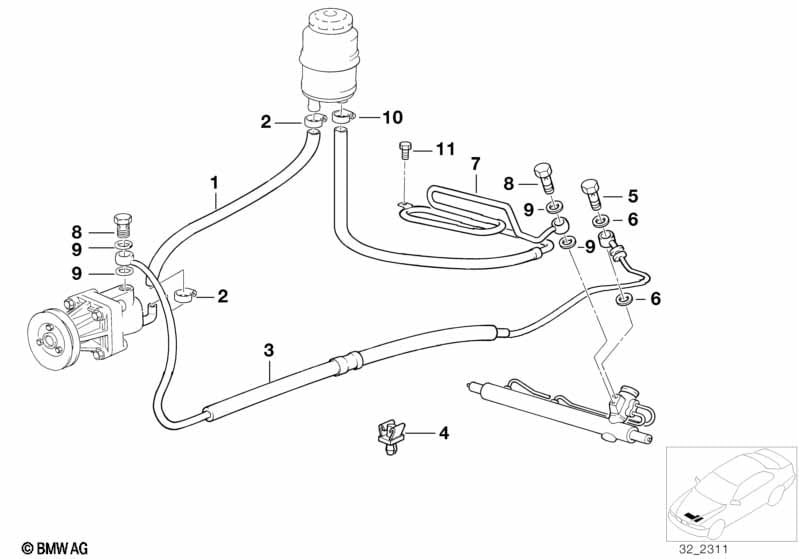

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

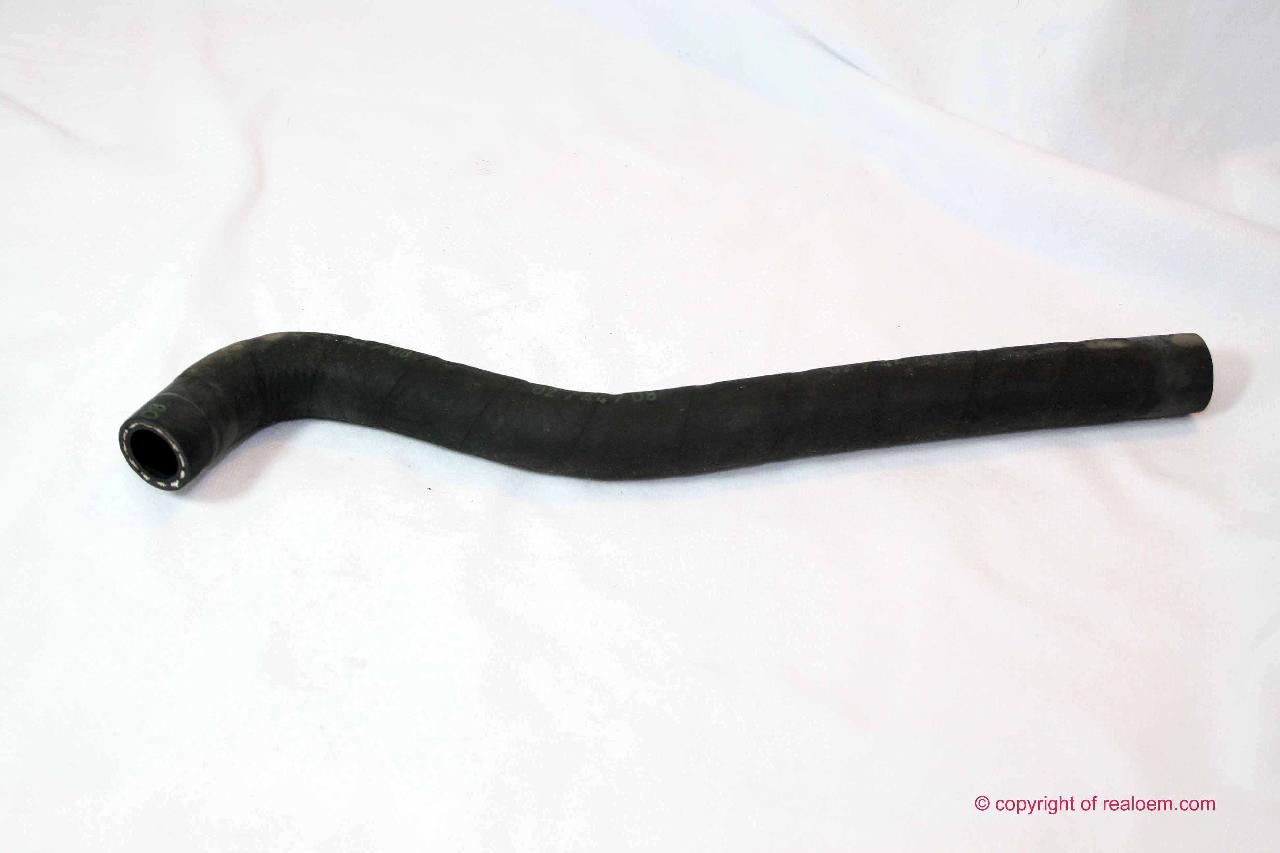

| 01 | Hose | 1 | 09/1995 | 32411093460 | $32.68 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | D=20,9-24,1 | 2 | 09/1995 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 03 | Pressure hose assy | 1 | 09/1995 | 32411093461 | $200.87 | Shop at ECS Tuning | ||||
| 04 | Support pressure hose assy | 1 | 09/1995 | 32411141219 | $1.20 | Shop at ECS Tuning | ||||
| 05 | Hollow bolt | M14X1,5X26 | 1 | 09/1995 | 32416852469 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X20-CUSN | 2 | 09/1995 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 07 | Return pipe with cooling coil | 1 | 09/1995 | 32411141714 | $86.44 | Shop at ECS Tuning | ||||
| 08 | Hollow bolt | M16X28 | 1 | 09/1995 | 32416852470 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A16X22-CUSN | 2 | 09/1995 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 10 | Hose clamp | D=16,6-20MM | 1 | 09/1995 | 16121180242 | $1.08 | Shop at ECS Tuning | |||
| 11 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 09/1995 | 07119904517 | $0.36 | Shop at ECS Tuning |
