M sports steer.-wheel, airbag, leather for BMW 3 Series E36 323ti (2000)

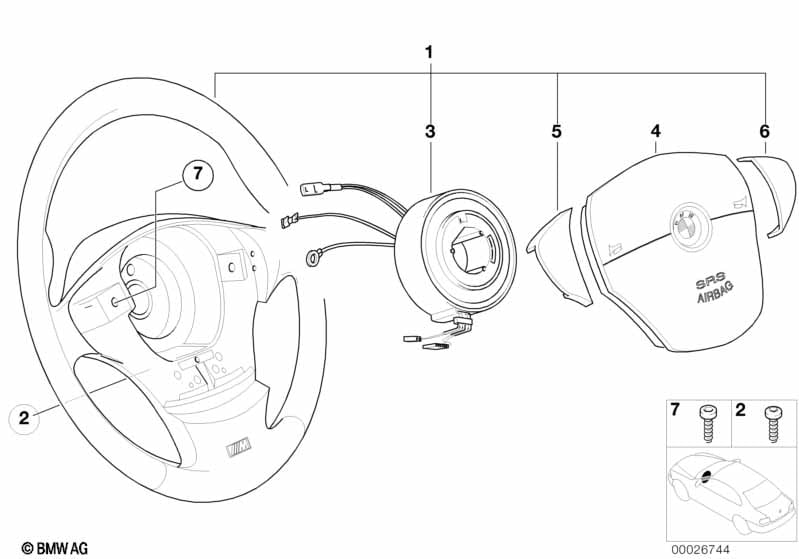

This M sports steer.-wheel, airbag, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Leath.M sports strng whl black/black | 1 | 01/1999 | 32342228230 | $414.95 | Shop at ECS Tuning | ||||
| 02 | Screw | M3X10 | 3 | 01/1999 | 32341094615 | $0.45 | Shop at ECS Tuning | |||
| 03 | Slip ring | 4-POLIG | 1 | 01/1999 | 32341162111 | $174.45 | Shop at ECS Tuning | |||
| 04 | Hub cap, airbag | 1 | 01/1999 | 32342229030 | $696.11 | Shop at ECS Tuning | ||||
| 05 | Covering left | SCHWARZ | 1 | 01/1999 | 61312490235 | $18.00 | Shop at ECS Tuning | |||
| For vehicles with Edition ZD |
S720A=Yes |
|||||||||
| 05 | Covering left | ALU | 1 | 09/1999 | 61312228683 | $36.50 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering right | SCHWARZ | 1 | 01/1999 | 61312490236 | $18.00 | Shop at ECS Tuning | |||
| For vehicles with Edition ZD |
S720A=Yes |
|||||||||
| 06 | Covering right | ALU | 1 | 09/1999 | 61312228684 | $36.50 | ENDED | Shop at ECS Tuning | ||
| 07 | Torx screw | M6X15 8.8 T30 | 2 | 01/1999 | 32341097110 | $1.41 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
