Handle unit left for BMW R45-R65LS..78-85 R65LS (1985)

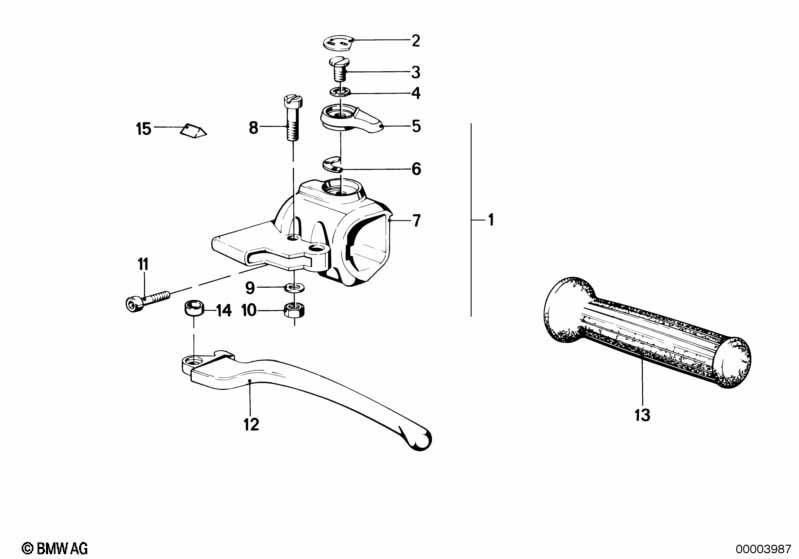

This Handle unit left technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FG* R 45, R 45/N, R 65, R 45 TIC, R 45 /N TIC, R 65 TIC Modell 81 / R 65 USA 11 .79 |
||||||||||
| 01 | Handle unit left | 1 | 09/1980 | 32721241862 | $156.46 | +core | Shop at ECS Tuning | |||
| 02 | Cap | 1 | 09/1980 | 32721451975 | $7.51 | Shop at ECS Tuning | ||||
| 03 | Saucer-head screw | M6X12 | 1 | 09/1980 | 07119907430 | $2.80 | Shop at ECS Tuning | |||
| 04 | Washer | 1,200MM | 1 | 09/1980 | 32721240791 | $1.97 | ENDED | Shop at ECS Tuning | ||
| 05 | Lever for choke | 1 | 09/1980 | 32721240792 | $21.94 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Plate | 1 | 09/1980 | 32721240790 | $2.87 | Shop at ECS Tuning | ||||
| 07 | Housing | 1 | 09/1980 | 32721240796 | $118.11 | +core | Shop at ECS Tuning | |||
| 08 | Screw | 1 | 09/1980 | 32721230870 | $5.37 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 1 | 09/1980 | 32721230871 | $0.51 | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M6-10 ZN | 1 | 09/1980 | 07/1985 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | |
| 10 | Self-locking hex nut | M6 ZNNIV SI | 1 | 09/1980 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 11 | Fillister-head screw | M5X16-8.8-ZNS | 1 | 09/1980 | 07119900311 | $0.60 | Shop at ECS Tuning | |||
| 12 | Hand lever left | 1 | 09/1980 | 32721234848 | $56.60 | +core | Shop at ECS Tuning | |||
| 13 | Griffgummi eckig links | 1 | 09/1980 | 32721237811 | $12.56 | Shop at ECS Tuning | ||||
| 14 | Bush | 1 | 09/1980 | 32721232662 | $1.71 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
