Power steering for BMW 5 Series E12 528 (1977)

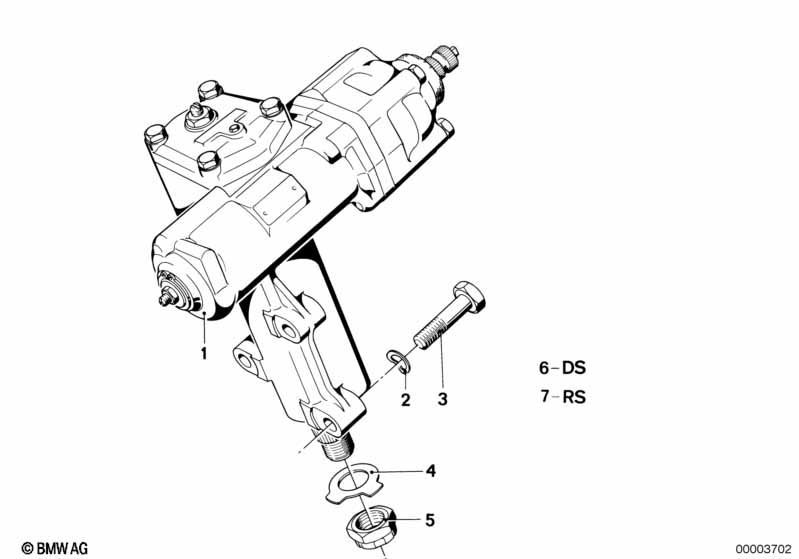

This Power steering technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. hydro steering gear | 1 | 32131111873 | $1975.91 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Hydro steering box | 1 | 32131123320 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X50-SB | 3 | 07119913864 | $1.59 | Shop at ECS Tuning | ||||
| 04 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 06 | Gasket set hydro steering | 1 | 32131106752 | $44.11 | ENDED | Shop at ECS Tuning | ||||
| 07 | Repair kit hydro steering box | 1 | 32131106751 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
