Hydro steering box, single components for BMW 5 Series E12 535i (1981)

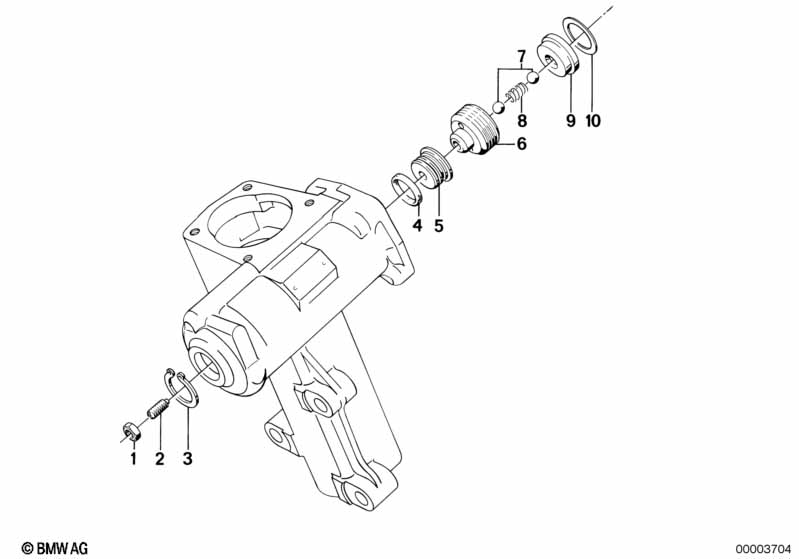

This Hydro steering box, single components technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | 1 | 32131106920 | ENDED | Shop at ECS Tuning | |||||
| 02 | Grub screw | M6X16 | X | 07119904020 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 24X1,2 | 1 | 07119934160 | $0.20 | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 32131106262 | ENDED | Shop at ECS Tuning | |||||
| 05 | Plug | 1 | 32131106742 | ENDED | Shop at ECS Tuning | |||||
| 06 | Valve washer | 1 | 32131106265 | ENDED | Shop at ECS Tuning | |||||
| 07 | Ball | 9MM III | 2 | 07119986298 | $0.59 | Shop at ECS Tuning | ||||
| 08 | Compression spring | 1 | 32131106276 | ENDED | Shop at ECS Tuning | |||||
| 09 | Valve washer | 1 | 32131104821 | ENDED | Shop at ECS Tuning | |||||
| 10 | Shim | 1,900MM | 1 | 32131111897 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,000MM | 1 | 32131111898 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,100MM | 1 | 32131111899 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,200MM | 1 | 32131111900 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,300MM | 1 | 32131111901 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,400MM | 1 | 32131111902 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,500MM | 1 | 32131111903 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,600MM | 1 | 32131111904 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,700MM | 1 | 32131111905 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 2,800MM | 1 | 32131111906 | $3.11 | ENDED | Shop at ECS Tuning |
