Hydro steering box - piston/mounting for BMW 6 Series E24 628CSi (1982)

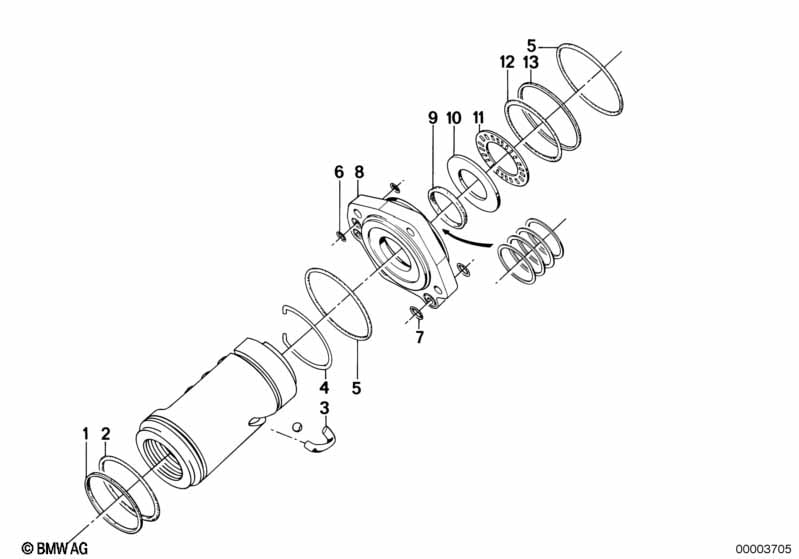

This Hydro steering box - piston/mounting technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 1 | 05/1982 | 32131104804 | ENDED | Shop at ECS Tuning | ||||
| 02 | Piston ring | 1 | 05/1982 | 32131104803 | ENDED | Shop at ECS Tuning | ||||
| 03 | Circulation tube half | 2 | 05/1982 | 32131112891 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock Ring | 1 | 05/1982 | 32131106749 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 60X2MM | 2 | 05/1982 | 32131104840 | $3.39 | ENDED | Shop at ECS Tuning | ||
| 06 | O-ring | 7,7 X 1,5 MM | 4 | 05/1982 | 32131111912 | $1.17 | ENDED | Shop at ECS Tuning | ||
| 07 | O-ring | 7,7 X 1,5 MM | 2 | 05/1982 | 32131111912 | $1.17 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | 1 | 05/1982 | 32131111911 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket | 1 | 05/1982 | 32131104841 | $6.17 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 2,400MM | 1 | 05/1982 | 32131104862 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 2,160MM | 1 | 05/1982 | 32131109230 | ENDED | Shop at ECS Tuning | |||
| 11 | Needle cage | 1 | 05/1982 | 32131104863 | $7.60 | ENDED | Shop at ECS Tuning | |||
| 12 | O-ring | 1 | 05/1982 | 32131104864 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 13 | Gasket ring | 1,8MM | 1 | 05/1982 | 32131104865 | $2.78 | ENDED | Shop at ECS Tuning | ||
| 13 | Gasket ring | 1,7MM | 1 | 05/1982 | 32131104866 | $2.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
