Steering lock/ignition switch for BMW 3 Series E30 320i (1992)

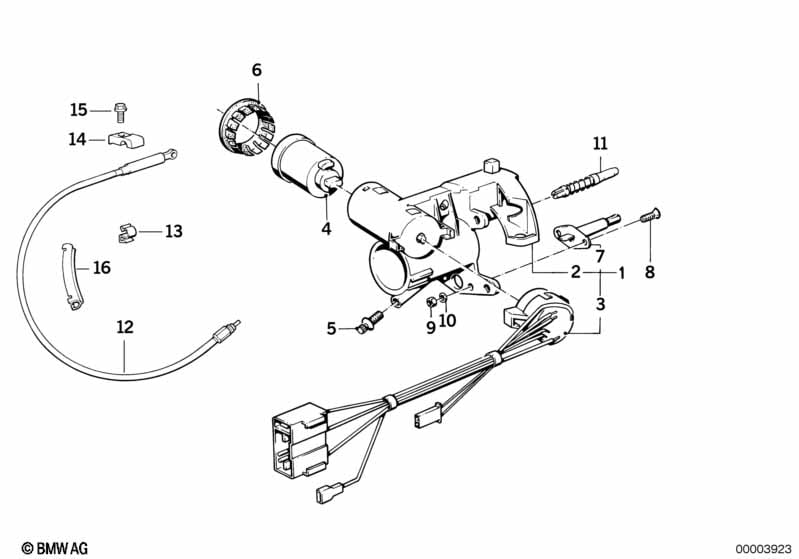

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and Airbag |
L807A=Yes =Yes |
|||||||||
| 01 | Steering lock | 1 | 09/1983 | 32321156458 | Shop at ECS Tuning | |||||
| 03 | Ignition switch | 1 | 09/1983 | 61321374868 | Shop at ECS Tuning | |||||
| 04 | Lock cylinder with key | 1 | 32321152474 | $51.19 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock (with key code) | 1.001-2.900 | 1 | 32321153046 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Lock (with key code) | AB 3.001 | 1 | 32329069307 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock (with key code) | AB 10.001 | 1 | 32329069308 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Lock (with key code) | AB 40.001 | 1 | 32329069309 | $71.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Airbag |
L807A=Yes =Yes |
|||||||||
| 04 | Lock cylinder with key | 1 | 32321152474 | $51.19 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock (with key code) | 1.001-2.900 | 1 | 32321153046 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Lock (with key code) | AB 3.001 | 1 | 32329069307 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock (with key code) | AB 10.001 | 1 | 32329069308 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Lock (with key code) | AB 40.001 | 1 | 32329069309 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Fracture bolt | M8X25,8 | 1 | 32311154176 | $8.45 | Shop at ECS Tuning | ||||
| 06 | Ring | 1 | 32311162057 | $1.23 | Shop at ECS Tuning | |||||
| 07 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X20 | 2 | 07119906853 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Steering lock/ignition switch?
- This technical diagram illustrates the Steering lock/ignition switch within the Steering group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Steering lock (Part #32321156458).
- Which models use the hardware listed in this Steering lock/ignition switch?
- The hardware and components featured in the Steering lock/ignition switch are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Steering lock (32321156458) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering lock/ignition switch assembly?
- Each item in the Steering lock/ignition switch corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Steering lock by locating its position on the schematic, which then links to the official BMW part number 32321156458 for the Steering section.
