Steering linkage for BMW 3 Series E21 320 (1979)

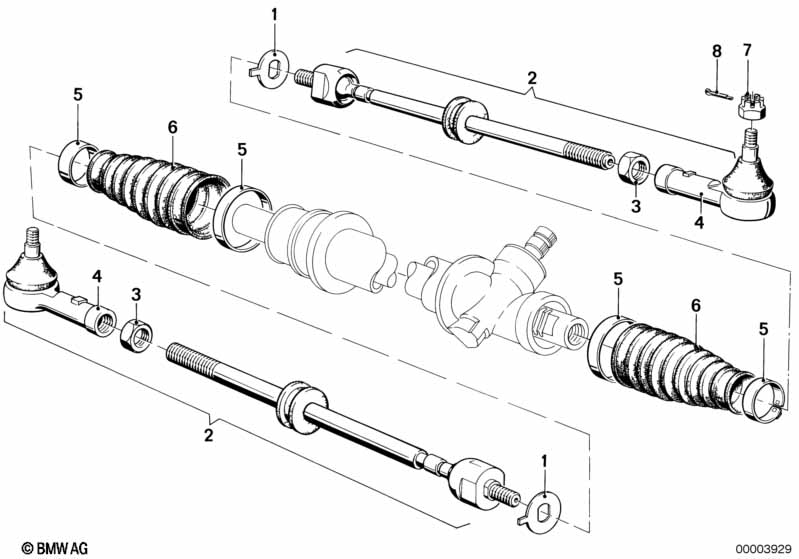

This Steering linkage technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Securing plate | 2 | 32111116563 | $3.03 | Shop at ECS Tuning | |||||
| 02 | Tie rod | 2 | 32111115229 | $128.11 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M14X1,5 | 2 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Ball joint | 2 | 32111116463 | $58.80 | Shop at ECS Tuning | |||||
| 05 | Tension strap | 4 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 06 | Rubber boot | 2 | 32111118688 | $13.47 | Shop at ECS Tuning | |||||
| 07 | Crown nut | M10X1 | 2 | 07119923436 | $2.17 | Shop at ECS Tuning | ||||
| 08 | Split pin | 2X20 | 2 | 07119945112 | $0.40 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Steering linkage?
- This technical diagram illustrates the Steering linkage within the Steering group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Securing plate (Part #32111116563).
- Which models use the hardware listed in this Steering linkage?
- The hardware and components featured in the Steering linkage are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Securing plate (32111116563) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering linkage assembly?
- Each item in the Steering linkage corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Securing plate by locating its position on the schematic, which then links to the official BMW part number 32111116563 for the Steering section.
