Power steering pump for BMW 3 Series E36 318is (1996)

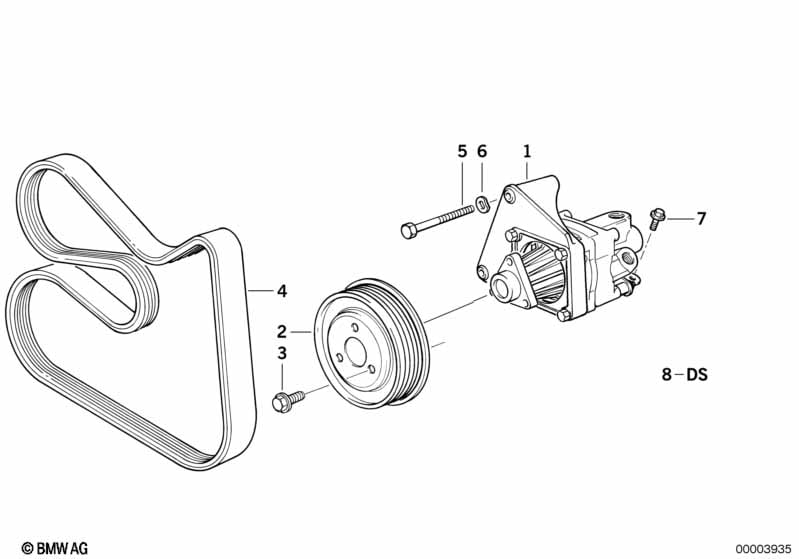

This Power steering pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vane pump | LUK | 1 | 09/1993 | 32411141516 | $347.08 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Power steering pump | LUK | 1 | 09/1993 | 32411141681 | $397.65 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Pulley | 1 | 09/1993 | 32421722556 | $63.50 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X16-Z1 | 3 | 09/1993 | 03/1996 | 07119913102 | $0.36 | ENDED | Shop at ECS Tuning | |
| 04 | Ribbed v-belt | 6K X 1660 | 1 | 11287636373 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X75-Z1 | 2 | 09/1993 | 03/1999 | 07119912954 | $1.20 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Power steering pump?
- This technical diagram illustrates the Power steering pump within the Steering group for the 3 Series E36 318is produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Vane pump (Part #32411141516).
- Which models use the hardware listed in this Power steering pump?
- The hardware and components featured in the Power steering pump are specific to the 3 Series E36 318is produced during 1996. These technical specifications ensure that parts like the Vane pump (32411141516) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering pump assembly?
- Each item in the Power steering pump corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Vane pump by locating its position on the schematic, which then links to the official BMW part number 32411141516 for the Steering section.
