Steering lock/ignition switch for BMW 3 Series E46 330d (2001)

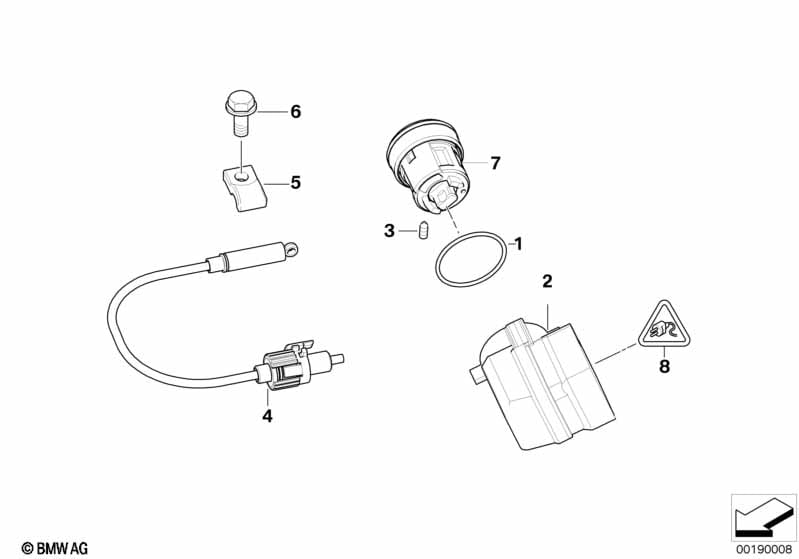

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 1 | 32321094182 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Ignition switch | 1 | 61326901961 | $80.19 | Shop at ECS Tuning | |||||
| 03 | Grub screw | 2 | 32301159449 | $2.57 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Interlock cable | 1 | 32301094687 | $27.11 | Shop at ECS Tuning | |||||
| 05 | Interlock cable bracket | 1 | 32311160323 | $2.70 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6 | 1 | 32311160657 | $0.83 | Shop at ECS Tuning | ||||
| 07 | Lock (with key code) | 1 | 32307197330 | $101.78 | Shop at ECS Tuning | |||||
| 08 | Plug housing | INTERNE NUMMER | 1 | 61131393790 | $5.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 0,5-1,0MM² | 1 | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Steering lock/ignition switch?
- This technical diagram illustrates the Steering lock/ignition switch within the Steering group for the 3 Series E46 330d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the O-ring (Part #32321094182).
- Which models use the hardware listed in this Steering lock/ignition switch?
- The hardware and components featured in the Steering lock/ignition switch are specific to the 3 Series E46 330d produced during 2001. These technical specifications ensure that parts like the O-ring (32321094182) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering lock/ignition switch assembly?
- Each item in the Steering lock/ignition switch corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the O-ring by locating its position on the schematic, which then links to the official BMW part number 32321094182 for the Steering section.
