Mechanical steering for BMW 1502-2002tii 2000 (1973)

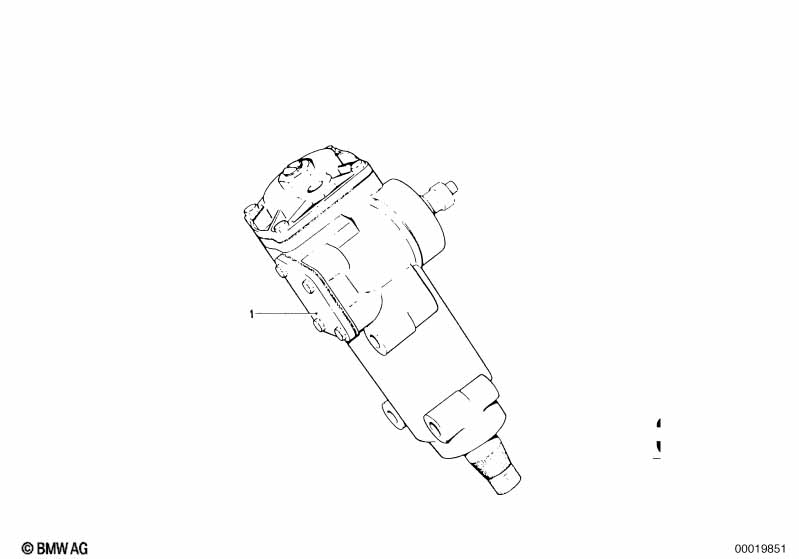

This Mechanical steering technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering gear | I=15:1 RHD | 1 | 04/1964 | 12/1976 | 32111108648 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2000 Mechanical steering?
- This technical diagram illustrates the Mechanical steering within the Steering group for the 1502-2002tii 2000 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Steering gear (Part #32111108648).
- Which models use the hardware listed in this Mechanical steering?
- The hardware and components featured in the Mechanical steering are specific to the 1502-2002tii 2000 produced during 1973. These technical specifications ensure that parts like the Steering gear (32111108648) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanical steering assembly?
- Each item in the Mechanical steering corresponds to the numbered list below the illustration. For the 1502-2002tii 2000, you can identify the Steering gear by locating its position on the schematic, which then links to the official BMW part number 32111108648 for the Steering section.
