Steering box single components for BMW 1502-2002tii 2002 (1971)

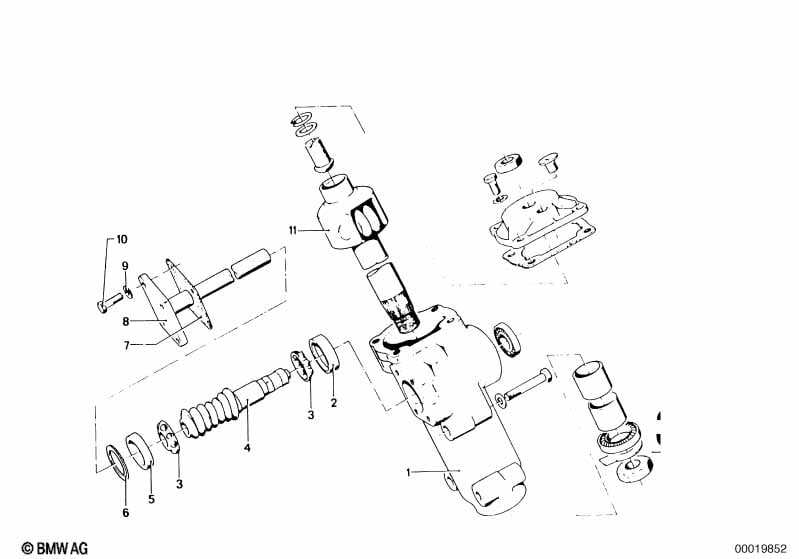

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Ring | 1 | 32112670132 | $33.97 | Shop at ECS Tuning | |||||
| 03 | Bearing ball cage | 2 | 32112670135 | $52.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Worm gear | 1 | 09/1963 | 07/1977 | 32111108744 | $189.50 | ENDED | Shop at ECS Tuning | ||
| 05 | Bearing ball ring,lower | 1 | 32111110268 | $25.89 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 32111113041 | ENDED | Shop at ECS Tuning | |||||
| 08 | Flange | 1 | 09/1963 | 07/1977 | 32112670143 | $64.92 | ENDED | Shop at ECS Tuning | ||
| 09 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Steering,roller axle | 1 | 09/1963 | 07/1977 | 32111113040 | $427.30 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Steering box single components?
- This technical diagram illustrates the Steering box single components within the Steering group for the 1502-2002tii 2002 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Ring (Part #32112670132).
- Which models use the hardware listed in this Steering box single components?
- The hardware and components featured in the Steering box single components are specific to the 1502-2002tii 2002 produced during 1971. These technical specifications ensure that parts like the Ring (32112670132) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering box single components assembly?
- Each item in the Steering box single components corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Ring by locating its position on the schematic, which then links to the official BMW part number 32112670132 for the Steering section.
