Steering box single components for BMW 1502-2002tii 2002 (1973)

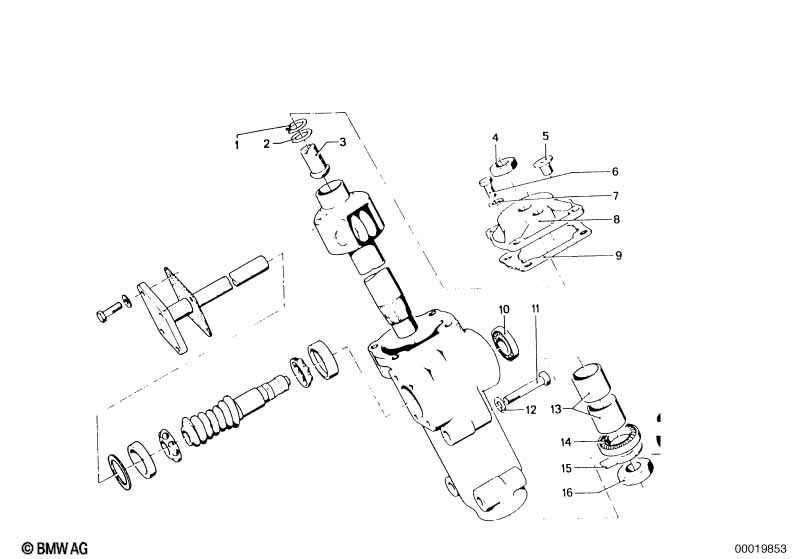

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | 1 | 32112670140 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | 2,200MM | X | 32112670144 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 2,250MM | X | 32112670145 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 2,300MM | X | 32112670146 | $3.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Shim | 2,350MM | X | 32112670147 | $3.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Shim | 2,400MM | X | 32112670148 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 2,45 | X | 32112670149 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 2,150MM | X | 32112670150 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adjuster | 1 | 32112670142 | $5.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Plug | 1 | 32111102781 | $9.48 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 32112670106 | $68.63 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket | 1 | 32112670107 | $5.33 | Shop at ECS Tuning | |||||
| 10 | Shaft seal | 1 | 32111110269 | $19.71 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M10X70-8.8 ZNS3 | 3 | 07119903068 | $4.63 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 13 | Bush | 2 | 32112670130 | $11.70 | ENDED | Shop at ECS Tuning | ||||
| 14 | Gasket ring | 1 | 32112670110 | $17.83 | Shop at ECS Tuning | |||||
| 15 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning |
