Steering linkage/tie rods for BMW 1502-2002tii 2002 (1973)

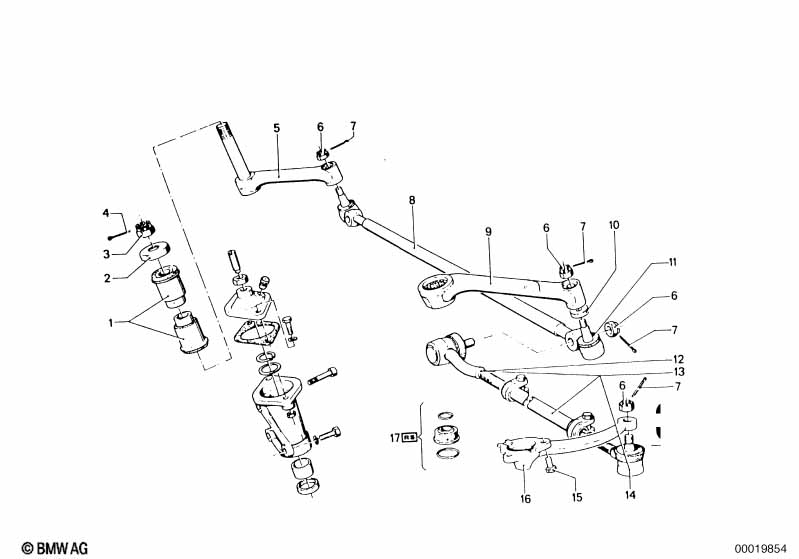

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber Mounting | 2 | 02/1962 | 07/1977 | 32211115116 | $36.03 | Shop at ECS Tuning | |||
| 02 | Cap | 1 | 02/1962 | 07/1977 | 32212475010 | $8.68 | Shop at ECS Tuning | |||
| 03 | Crown nut | M16X1,5 | 1 | 02/1962 | 07/1977 | 07119923465 | $5.38 | Shop at ECS Tuning | ||
| 04 | Split pin | 4X28 | 1 | 02/1962 | 07/1977 | 07119945228 | $0.37 | Shop at ECS Tuning | ||
| 05 | Pitman arm | 1 | 02/1962 | 07/1977 | 32212475050 | $255.45 | Shop at ECS Tuning | |||
| 06 | Crown nut | M10X1 | 6 | 07119923436 | $2.17 | Shop at ECS Tuning | ||||
| 07 | Split pin | 2X20 | 6 | 07119945112 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Tie rod,center | 1 | 32219057204 | $172.77 | Shop at ECS Tuning | |||||
| 09 | Pitman arm | 1 | 02/1962 | 07/1977 | 32212675150 | $181.91 | ENDED | Shop at ECS Tuning | ||
| 10 | Kit dust cap | 2 | 32211108363 | $3.53 | Shop at ECS Tuning | |||||
| 11 | Washer-gasket | 2 | 32211101374 | $1.63 | Shop at ECS Tuning | |||||
| 12 | Ball joint | 2 | 32211114844 | $62.98 | ENDED | Shop at ECS Tuning | ||||
| 13 | Tie rod | 2 | 32219057202 | $240.77 | Shop at ECS Tuning | |||||
| 14 | Ball joint | 2 | 32211102379 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | M 8 | 6 | 32211113178 | $8.35 | Shop at ECS Tuning | ||||
| 16 | Pitman arm | 1 | 32212624162 | $152.62 | ENDED | Shop at ECS Tuning | ||||
| 16 | Pitman arm | 1 | 32212624163 | $152.62 | ENDED | Shop at ECS Tuning | ||||
| 17 | Gasket set ball joint | 4 | 32211112322 | ENDED | Shop at ECS Tuning |
