Steer.col.-steer. spin. for BMW 1502-2002tii 2002 (1971)

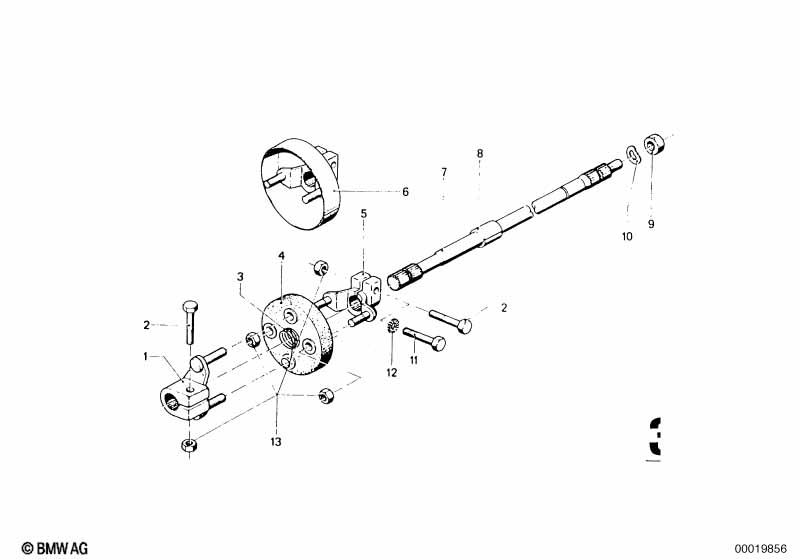

This Steer.col.-steer. spin. technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flange | Z=36 | 1 | 32311150426 | $42.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M8X35 | 2 | 03/1966 | 07/1977 | 07119913676 | $0.36 | Shop at ECS Tuning | ||
| 03 | Spring | 1 | 32311110814 | $34.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Universal joint | 1 | 32311112358 | Shop at ECS Tuning | ||||||
| 05 | Flange | Z=36 | 1 | 03/1966 | 07/1977 | 32311150426 | $42.73 | ENDED | Shop at ECS Tuning | |
| 07 | Steering spindle | M 14X1,5 | 1 | 32311114192 | ENDED | Shop at ECS Tuning | ||||
| 07 | Steering spindle | M 12X1,5 | 1 | 03/1966 | 04/1972 | 32312482105 | $555.77 | ENDED | Shop at ECS Tuning | |
| 09 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 10 | Washer | A13/HV-ZNS | 1 | 07/1977 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 10 | Washer | 12-300 HV-ZNS3 | 1 | 07/1977 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 10 | Washer | 13-140 HV-ZN | 1 | 07119936442 | $1.48 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M8 | 6 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 6 | 07129906196 | $1.60 | Shop at ECS Tuning |
