Steering column-trim panel/attach.p. for BMW 1502-2002tii 1802 (1973)

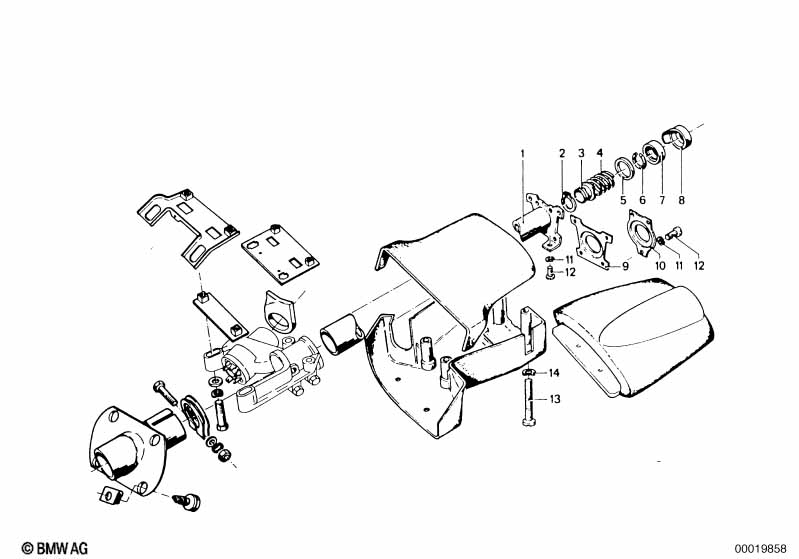

This Steering column-trim panel/attach.p. technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering column tube | 1 | 32311110904 | ENDED | Shop at ECS Tuning | |||||
| 02 | Snap ring | 1 | 08/1973 | 07/1977 | 32311113566 | $0.37 | Shop at ECS Tuning | |||
| 03 | Steering spindle bearing | 1 | 32311107627 | $99.90 | Shop at ECS Tuning | |||||
| 04 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 05 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 06 | Snap ring | 1 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 08 | Retainer | 1 | 32321118825 | $15.17 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket | 1 | 32311108986 | ENDED | Shop at ECS Tuning | |||||
| 11 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Set fillister head screw 10 | M5X8 | 2 | 07509064345 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M6X55 | 4 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 13 | Sheet metal screw | 4 | 08/1973 | 07/1977 | 32311112030 | $0.45 | ENDED | Shop at ECS Tuning | ||
| 14 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning |
