Steering lock/ignition switch for BMW 1502-2002tii 1602 (1973)

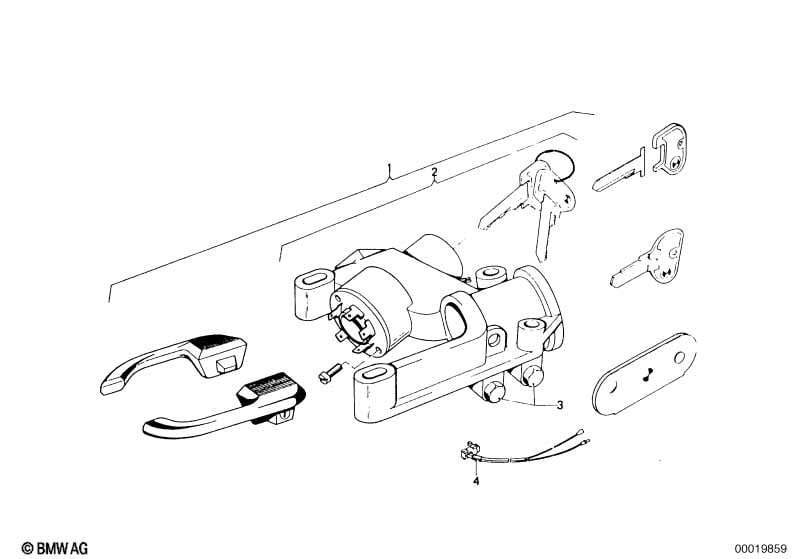

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit One-key locking system | 1 | 03/1966 | 07/1977 | 32321108998 | $311.45 | ENDED | Shop at ECS Tuning | ||
| 02 | Steering lock | 1 | 03/1966 | 07/1977 | 32321113711 | $339.61 | ENDED | Shop at ECS Tuning | ||
| 03 | Screw | 2 | 32322782105 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Steering lock/ignition switch?
- This technical diagram illustrates the Steering lock/ignition switch within the Steering group for the 1502-2002tii 1602 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit One-key locking system (Part #32321108998).
- Which models use the hardware listed in this Steering lock/ignition switch?
- The hardware and components featured in the Steering lock/ignition switch are specific to the 1502-2002tii 1602 produced during 1973. These technical specifications ensure that parts like the Repair kit One-key locking system (32321108998) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering lock/ignition switch assembly?
- Each item in the Steering lock/ignition switch corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Repair kit One-key locking system by locating its position on the schematic, which then links to the official BMW part number 32321108998 for the Steering section.
