Steering wheel for BMW 1502-2002tii 1802 (1973)

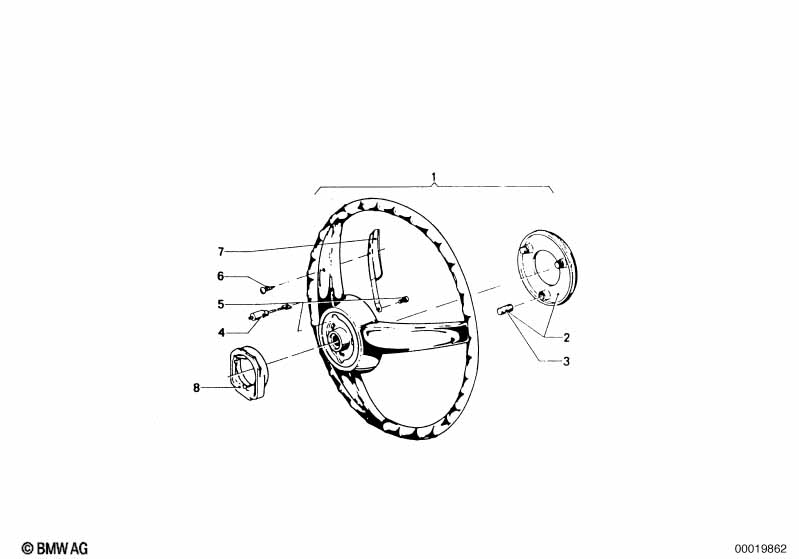

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel | D=400MM | 1 | 32331116497 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cap | 1 | 32331107683 | $21.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Plug | 3 | 32331350651 | ENDED | Shop at ECS Tuning | |||||
| 04 | Carbon pin | 1 | 32331351129 | $12.29 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | AM4X6 | 3 | 07119919363 | ENDED | Shop at ECS Tuning | ||||
| 06 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 3 | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Horn pad | 3 | 32331350800 | ENDED | Shop at ECS Tuning | |||||
| 08 | Slip ring | 1 | 32331112222 | $64.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1802 Steering wheel?
- This technical diagram illustrates the Steering wheel within the Steering group for the 1502-2002tii 1802 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Steering wheel (Part #32331116497).
- Which models use the hardware listed in this Steering wheel?
- The hardware and components featured in the Steering wheel are specific to the 1502-2002tii 1802 produced during 1973. These technical specifications ensure that parts like the Steering wheel (32331116497) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel assembly?
- Each item in the Steering wheel corresponds to the numbered list below the illustration. For the 1502-2002tii 1802, you can identify the Steering wheel by locating its position on the schematic, which then links to the official BMW part number 32331116497 for the Steering section.
