Steering wheel for BMW 1502-2002tii 2002 (1975)

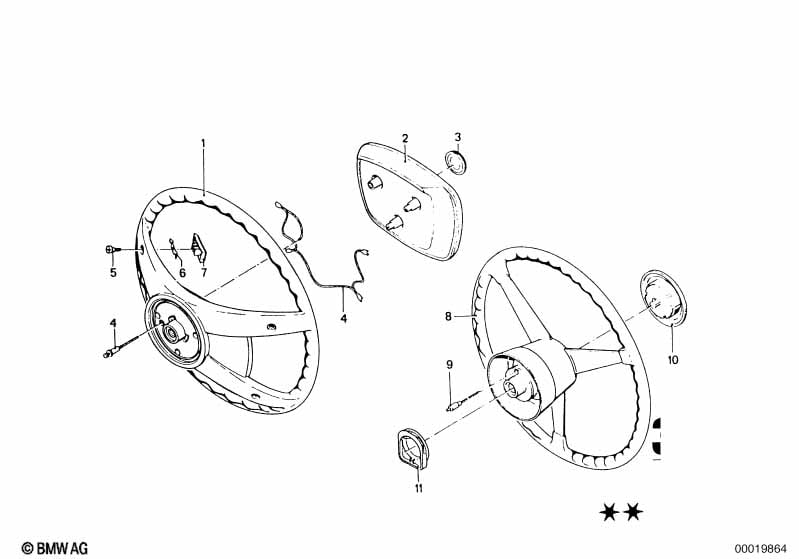

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel | D=400MM | 1 | 08/1973 | 07/1977 | 32331116494 | $199.76 | ENDED | Shop at ECS Tuning | |
| Special series, Luxury | ||||||||||
| 01 | Steering wheel | D=400MM | 1 | 32331116497 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cap | 1 | 08/1973 | 07/1977 | 32331116501 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 03 | Badge | 1 | 32331110960 | $9.71 | Shop at ECS Tuning | |||||

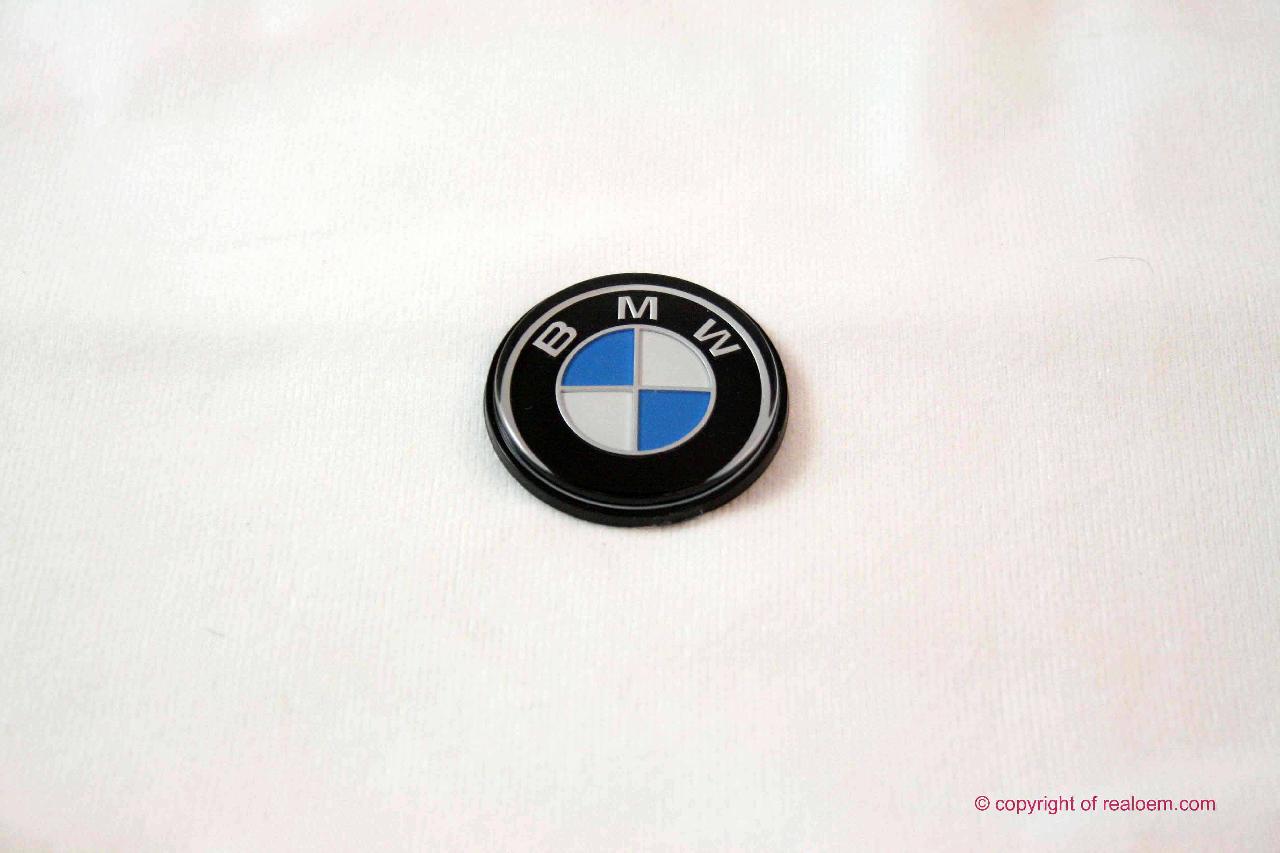

| 03 | Badge | 1 | 32711238280 | $9.02 | Shop at ECS Tuning | |||||
| 04 | Carbon pin | 1 | 32331112031 | $16.98 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | 4 | 32331110962 | $0.45 | Shop at ECS Tuning | |||||
| 06 | contact spring | 4 | 32331150830 | $1.12 | ENDED | Shop at ECS Tuning | ||||

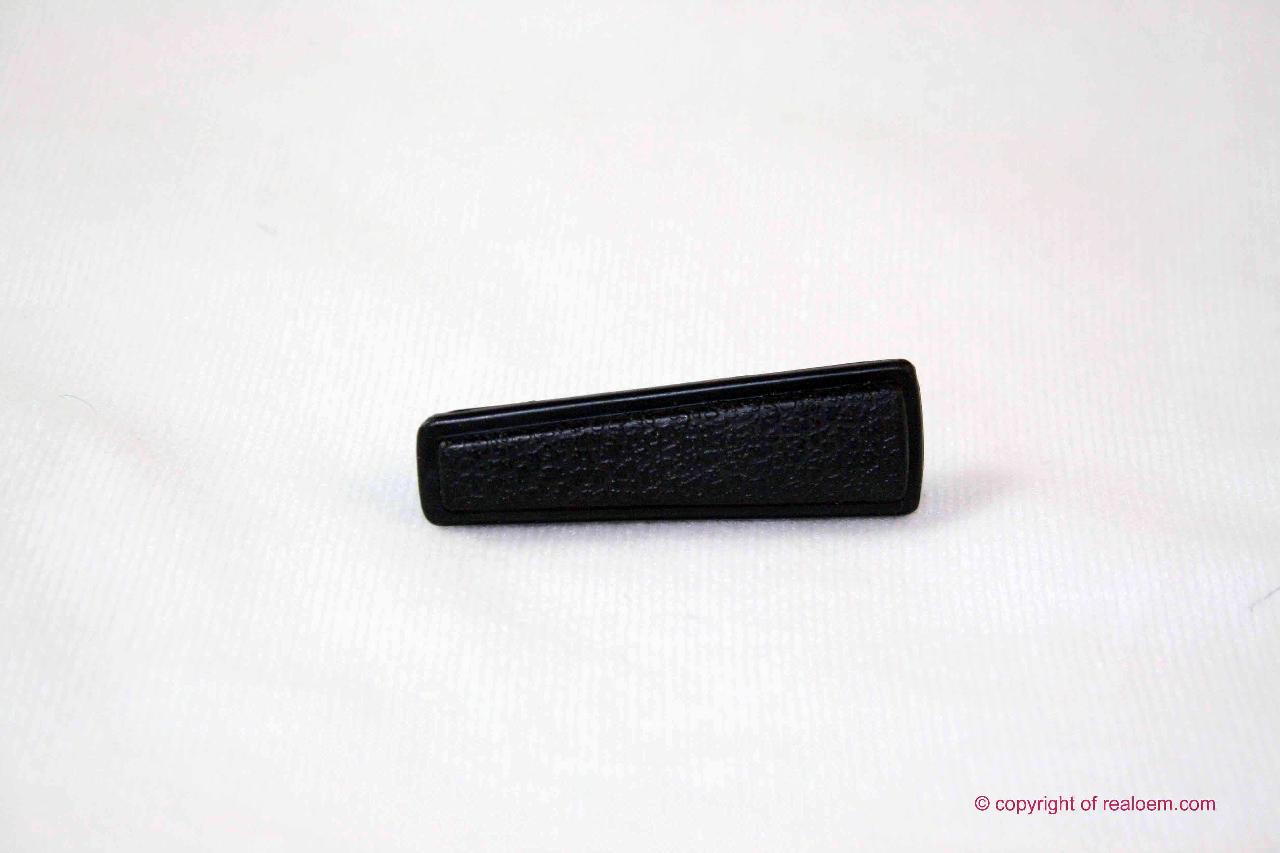

| 07 | Horn pad | 4 | 32331110939 | $3.71 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sports steering wheel | D=380MM | 1 | 32331113738 | ENDED | Shop at ECS Tuning | ||||
| 09 | Carbon pin | 1 | 32331109750 | $10.23 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Sports steering wheel | D=380MM | X | 32331113738 | ENDED | Shop at ECS Tuning | ||||
| 10 | Horn button | 1 | 32331113744 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Sports steering wheel | D=380MM | X | 32331113738 | ENDED | Shop at ECS Tuning | ||||
| 11 | Slip ring | 1 | 32331112222 | $64.36 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
