Steer.col.-steer. spin. for BMW 1500-2000CS 1800 (1967)

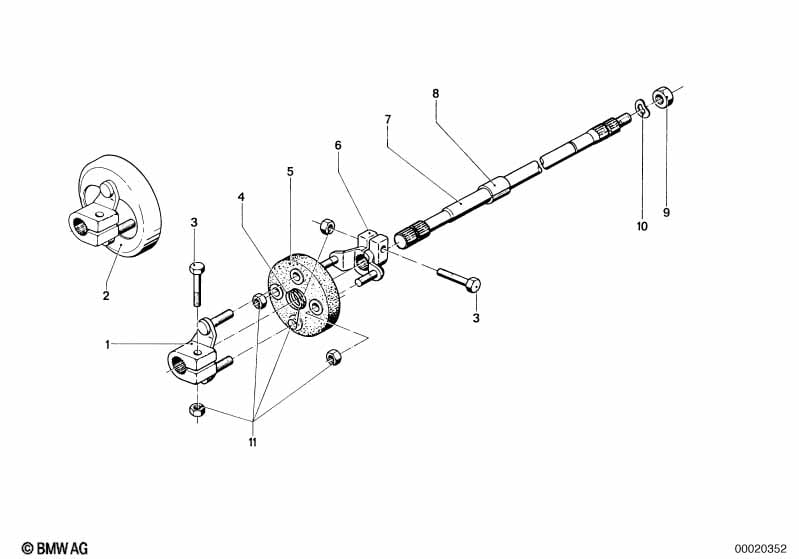

This Steer.col.-steer. spin. technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Flange | 1 | 04/1964 | 01/1972 | 32311103573 | ENDED | Shop at ECS Tuning | |||
| 04 | Spring | 1 | 32311110814 | $34.35 | ENDED | Shop at ECS Tuning | ||||
| 05 | Universal joint | 1 | 32311112358 | Shop at ECS Tuning | ||||||
| 06 | Flange | Z=36 | 1 | 32311150426 | $42.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Steering spindle | 1 | 04/1964 | 06/1968 | 32312682105 | ENDED | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 02/1962 | 02/1970 | 07129900047 | $0.62 | Shop at ECS Tuning | ||
| 09 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 09/1965 | 01/1972 | 31106774714 | $1.12 | Shop at ECS Tuning | ||
| 10 | Washer | A13/HV-ZNS | 1 | 02/1962 | 02/1970 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | |
| 10 | Washer | 12-300 HV-ZNS3 | 1 | 02/1962 | 02/1970 | 07119904119 | $0.25 | Shop at ECS Tuning | ||
| 10 | Washer | 13-140 HV-ZN | 1 | 02/1962 | 02/1970 | 07119936442 | $1.48 | Shop at ECS Tuning | ||
| 10 | Wave washer | B14 | 1 | 09/1965 | 01/1972 | 07119932147 | $0.20 | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M8 | 6 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M8-8-ZNNI SI | 6 | 07129906196 | $1.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
