Steering column-tube/trim panel for BMW 1500-2000CS 2000tilux (1968)

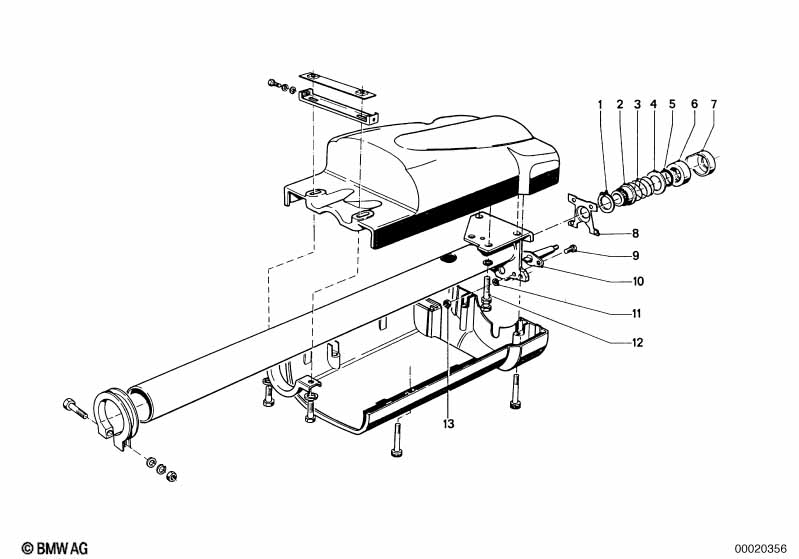

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | 1 | 32311113566 | $0.37 | Shop at ECS Tuning | |||||
| 02 | Steering spindle bearing | 35,10X18,10 | 1 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||
| 03 | Compression spring | 1 | 32312682142 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 05 | Snap ring | 1 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 07 | Retainer | 1 | 32321118825 | $15.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 32311108670 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 10 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Fracture bolt | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning |
