Steering lock/ignition switch for BMW 1500-2000CS 1800ti (1966)

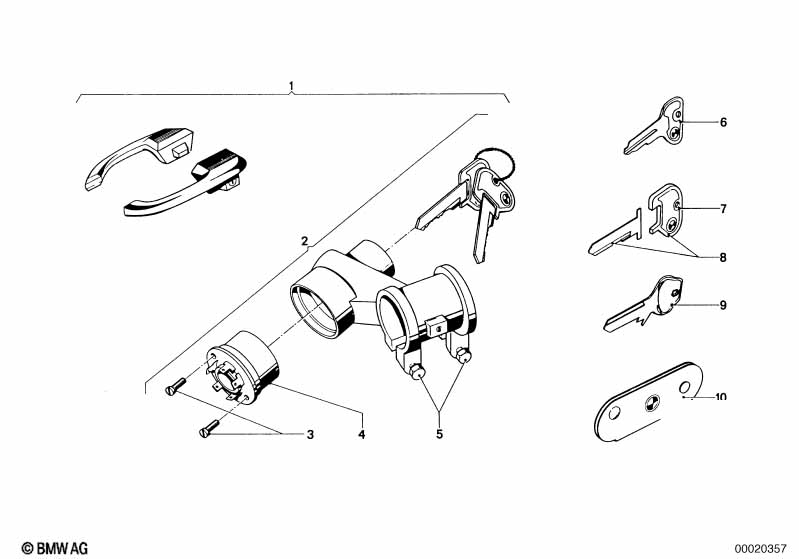

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.

Steering lock/ignition switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit One-key locking system 1 32321102096 ENDED Shop at ECS Tuning
02 Steering lock 1 32321101964 ENDED Shop at ECS Tuning
03 Fillister-head screw AM4X10 2 07119919371 $0.11 ENDED Shop at ECS Tuning
04 Switch 1 61312682120 $72.18 Shop at ECS Tuning
05 Screw 2 32322782105 ENDED Shop at ECS Tuning
10 Key case 1 51218213607 $9.15 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
