Steering lock/ignition switch for BMW 1500-2000CS 1800 (1968)

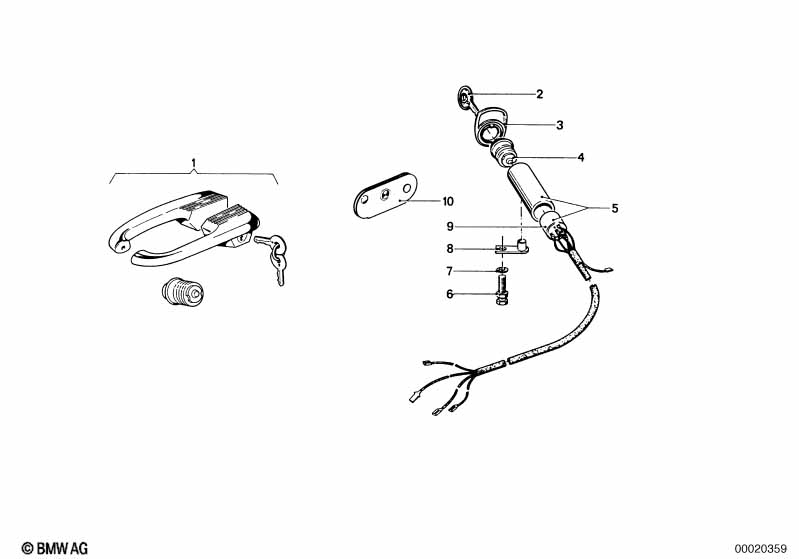

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit One-key locking system | 1 | 32321105747 | ENDED | Shop at ECS Tuning | |||||
| 02 | Standard key (code) | X | 32321102064 | $33.21 | Shop at ECS Tuning | |||||
| 02 | Standard key (blank) | X | 32321102085 | $16.67 | Shop at ECS Tuning | |||||
| 03 | Plate | 1 | 32321105070 | ENDED | Shop at ECS Tuning | |||||
| 04 | Lock cylinder with key | 1 | 32321105072 | $92.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Steering lock | 1 | 07/1968 | 12/1971 | 32321103764 | ENDED | Shop at ECS Tuning | |||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Switch | 1 | 07/1968 | 12/1971 | 61321350532 | $158.91 | ENDED | Shop at ECS Tuning | ||
| 10 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
