Hydro steering box for BMW 2.5CS-3.0CSL 3.0CSL (1973)

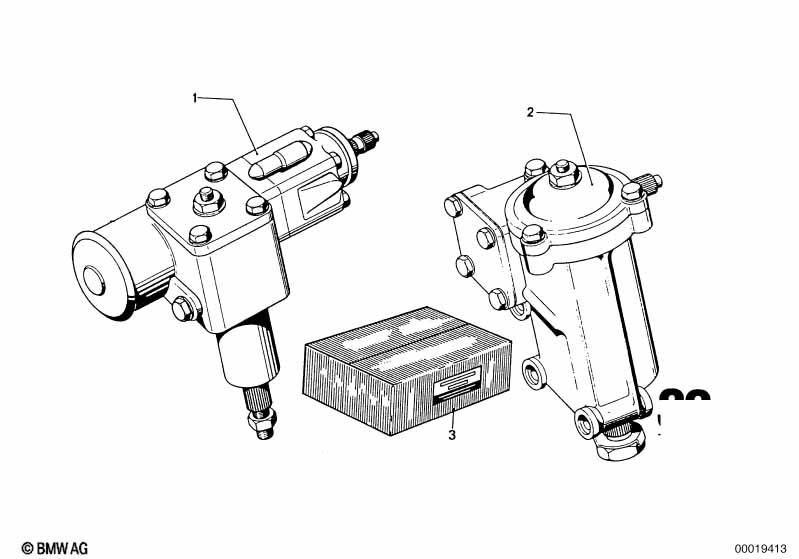

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro steering box | I = 15.7:1 | 1 | 12/1968 | 11/1975 | 32131105075 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. hydro steering gear | I = 15.7:1 | 1 | 12/1968 | 11/1975 | 32131106741 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. hydro steering gear | 1 | 12/1968 | 11/1975 | 32131118549 | $1540.08 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Vane pump | 100BAR | 1 | 12/1968 | 11/1975 | 32411124085 | $696.82 | Shop at ECS Tuning | ||
| 02 | Steering gear | I = 16,4:1 HD | 1 | 09/1972 | 11/1975 | 32111105301 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
