Steering box single components for BMW 2.5CS-3.0CSL 3.0CSL (1973)

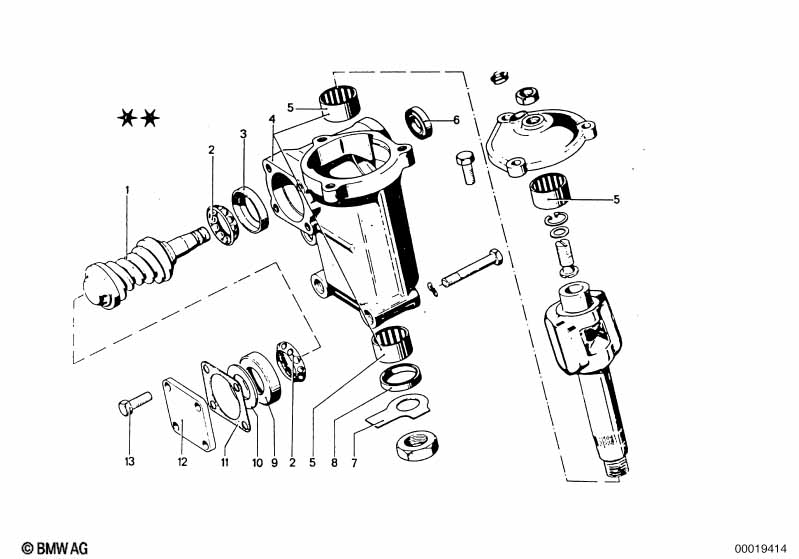

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Also applies to "City Package" | ||||||||||
| 02 | Bearing ball cage | 2 | 32112670135 | $52.35 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bearing ball ring,upper | 1 | 32111110267 | ENDED | Shop at ECS Tuning | |||||
| 05 | Needle sleeve | 3 | 32111114272 | $23.99 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 32111110269 | $19.71 | Shop at ECS Tuning | |||||
| 07 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 08 | Shaft seal | 1 | 32111104719 | $20.44 | Shop at ECS Tuning | |||||
| 09 | Bearing ball ring,lower | 1 | 32111110268 | $25.89 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | 1 | 32111114287 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket | 1 | 32112670165 | $4.70 | ENDED | Shop at ECS Tuning | ||||
| 11 | Gasket | 1 | 32112670166 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket | 1 | 32112670167 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket | 0,3MM | 1 | 32112670168 | ENDED | Shop at ECS Tuning | ||||
| 12 | Flange | 1 | 32112670143 | $64.92 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M8X25-Z3 | 4 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
