Hydro steering-oil carrier parts for BMW 2.5CS-3.0CSL 2800CS (1971)

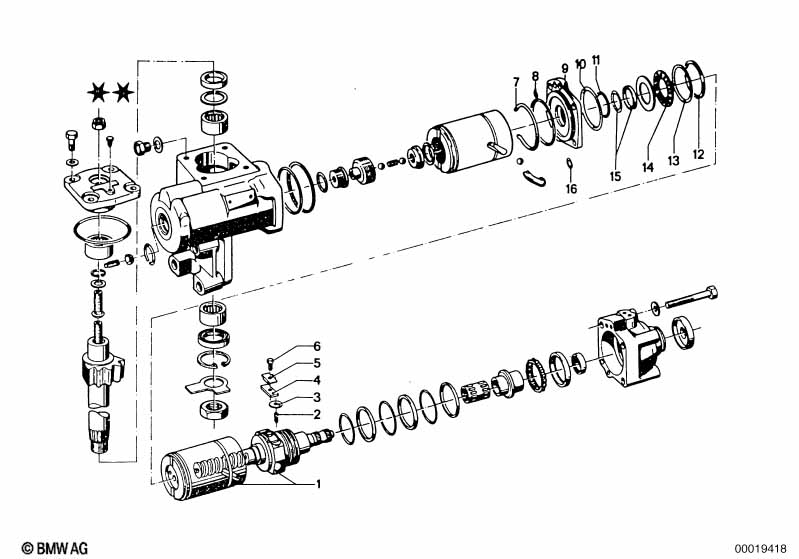

This Hydro steering-oil carrier parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2800CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Worm with piston | 1 | 12/1968 | 11/1975 | 32131106744 | ENDED | Shop at ECS Tuning | |||
| 02 | Compression spring | 2 | 32131104798 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | 2 | 32131104797 | ENDED | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 32131104799 | ENDED | Shop at ECS Tuning | |||||
| 05 | Securing plate | 1 | 32131104800 | ENDED | Shop at ECS Tuning | |||||
| 07 | Lock Ring | 1 | 32131106749 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 7,7 X 1,5 MM | 6 | 32131111912 | $1.17 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover | 1 | 32131104837 | ENDED | Shop at ECS Tuning | |||||
| 10 | O-ring | 60X2MM | 2 | 32131104840 | $3.39 | ENDED | Shop at ECS Tuning | |||
| 11 | Stop disk | X | 32131104867 | ENDED | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 1,8MM | 1 | 32131104865 | $2.78 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket ring | 1,7MM | 1 | 32131104866 | $2.78 | ENDED | Shop at ECS Tuning | |||
| 13 | O-ring | 1 | 32131104864 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 14 | Needle cage | 1 | 32131104863 | $7.60 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket | 1 | 32131104841 | $6.17 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2800CS Hydro steering-oil carrier parts?
- This technical diagram illustrates the Hydro steering-oil carrier parts within the Steering group for the 2.5CS-3.0CSL 2800CS produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Worm with piston (Part #32131106744).
- Which models use the hardware listed in this Hydro steering-oil carrier parts?
- The hardware and components featured in the Hydro steering-oil carrier parts are specific to the 2.5CS-3.0CSL 2800CS produced during 1971. These technical specifications ensure that parts like the Worm with piston (32131106744) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-oil carrier parts assembly?
- Each item in the Hydro steering-oil carrier parts corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2800CS, you can identify the Worm with piston by locating its position on the schematic, which then links to the official BMW part number 32131106744 for the Steering section.
