Hydro steering-oil carrier parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

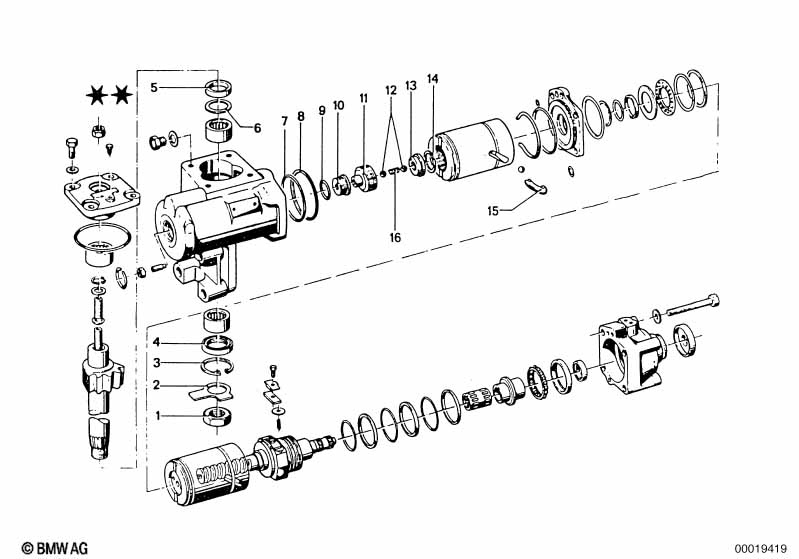

This Hydro steering-oil carrier parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 02 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 03 | Lock Ring | 40X1,75 | 1 | 07119934700 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 1 | 32131111871 | $15.79 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 1 | 32131104783 | ENDED | Shop at ECS Tuning | |||||
| 06 | Washer | 1 | 32131104782 | ENDED | Shop at ECS Tuning | |||||
| 07 | O-ring | 1 | 32131104804 | ENDED | Shop at ECS Tuning | |||||
| 08 | Piston ring | 1 | 32131104803 | ENDED | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 32131106262 | ENDED | Shop at ECS Tuning | |||||
| 10 | Plug | 1 | 32131106742 | ENDED | Shop at ECS Tuning | |||||
| 11 | Valve washer | 1 | 32131106265 | ENDED | Shop at ECS Tuning | |||||
| 12 | Ball | 9MM III | 2 | 07119986298 | $0.59 | Shop at ECS Tuning | ||||
| 14 | Shim | 1,000MM | 1 | 32131106898 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,100MM | 1 | 32131106899 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,200MM | 1 | 32131106900 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,300MM | 1 | 32131106901 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,400MM | 1 | 32131106902 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,500MM | 1 | 32131106903 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,600MM | 1 | 32131106904 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,700MM | 1 | 32131106905 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,800MM | 1 | 32131106906 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shim | 1,900MM | 1 | 32131106907 | ENDED | Shop at ECS Tuning | ||||
| 15 | Circulation tube half | 2 | 12/1968 | 11/1975 | 32131104805 | ENDED | Shop at ECS Tuning | |||
| 16 | Compression spring | 1 | 32131106276 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
