Steering linkage/tie rods for BMW 2.5CS-3.0CSL 3.0CS (1973)

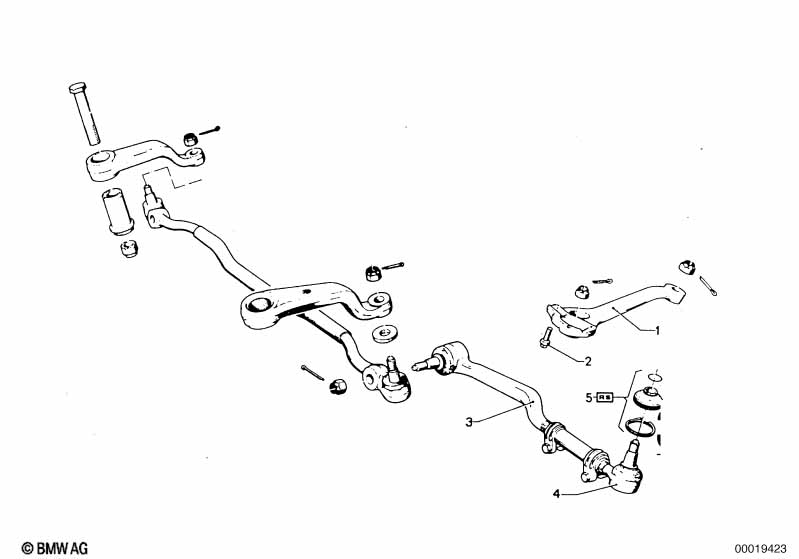

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tie rod lever | M 10 L=250,5 MM | 1 | 32211108352 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right tie rod arm | M 10 L=250,5 MM | 1 | 32211108353 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M 10 | 6 | 32211113179 | $5.12 | ENDED | Shop at ECS Tuning | |||
| 03 | Tie rod | 2 | 32211102364 | $183.81 | Shop at ECS Tuning | |||||
| 04 | Ball joint | 2 | 32211114843 | $41.23 | Shop at ECS Tuning | |||||
| 05 | Gasket set ball joint | 4 | 32211112322 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Steering linkage/tie rods?
- This technical diagram illustrates the Steering linkage/tie rods within the Steering group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Left tie rod lever (Part #32211108352).
- Which models use the hardware listed in this Steering linkage/tie rods?
- The hardware and components featured in the Steering linkage/tie rods are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Left tie rod lever (32211108352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering linkage/tie rods assembly?
- Each item in the Steering linkage/tie rods corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Left tie rod lever by locating its position on the schematic, which then links to the official BMW part number 32211108352 for the Steering section.
