Steering column for BMW 2.5CS-3.0CSL 3.0CS (1973)

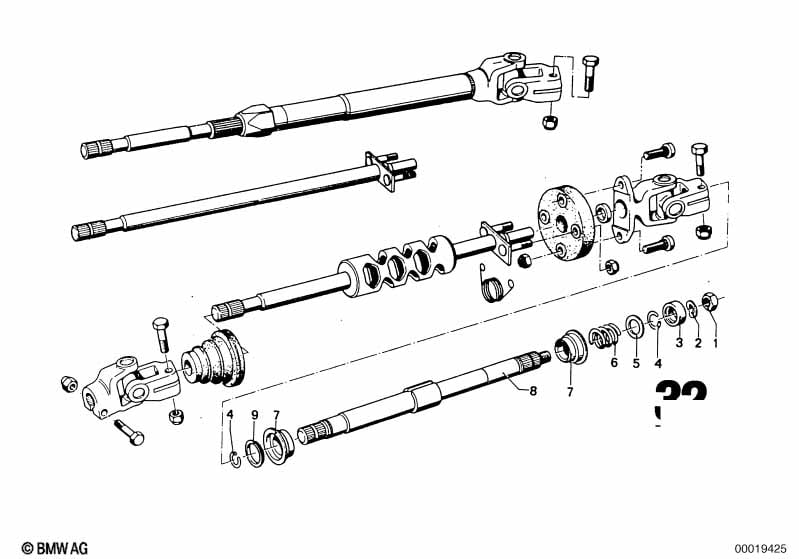

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 01 | Hex nut | M12X1,5 | 1 | 12/1968 | 11/1975 | 07119921627 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||

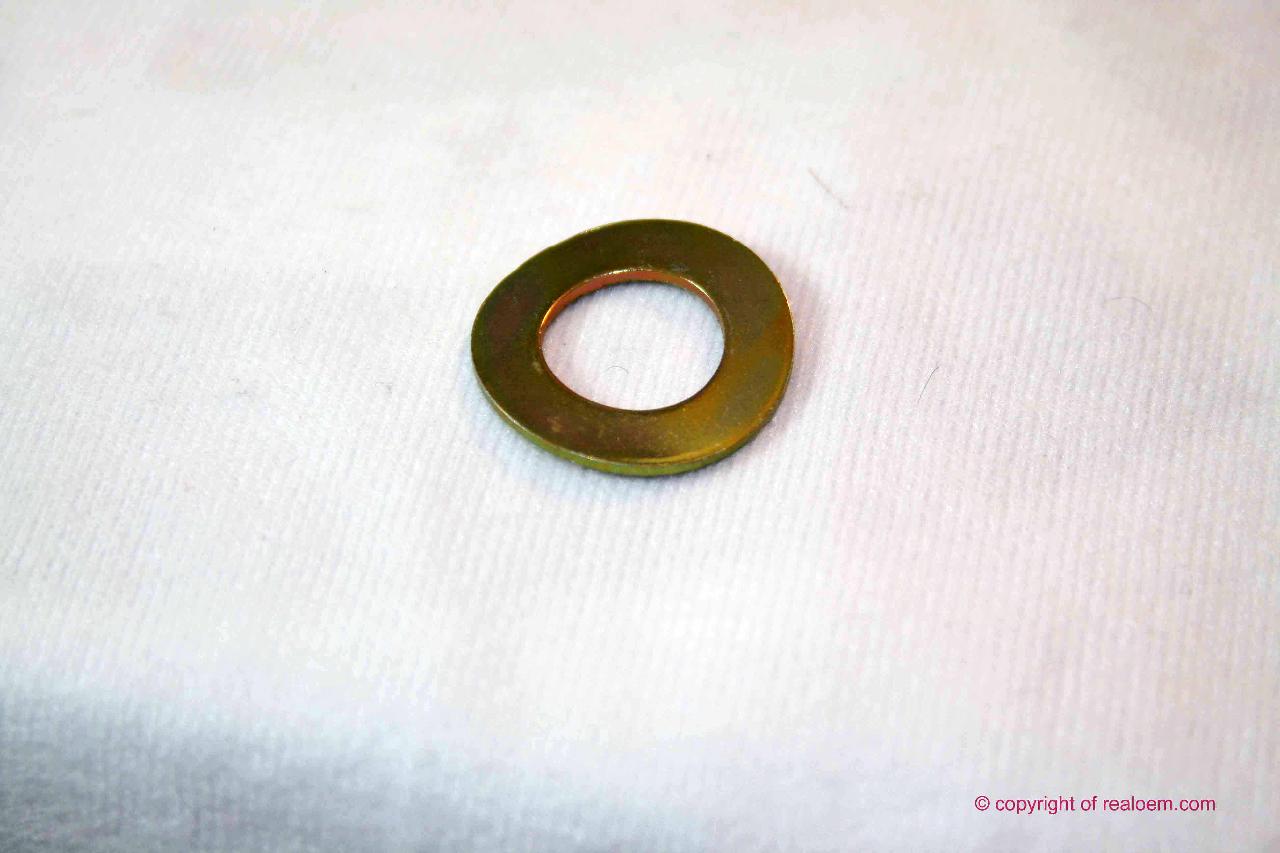

| 02 | Wave washer | B12-ZN | 1 | 12/1968 | 11/1975 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |
| 03 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Snap ring | 2 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 07 | Steering spindle bearing | 35,10X18,10 | 2 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||
| 08 | Steering spindle upper | 1 | 12/1968 | 11/1975 | 32311103629 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
