Hydro steering-vane pump/single parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

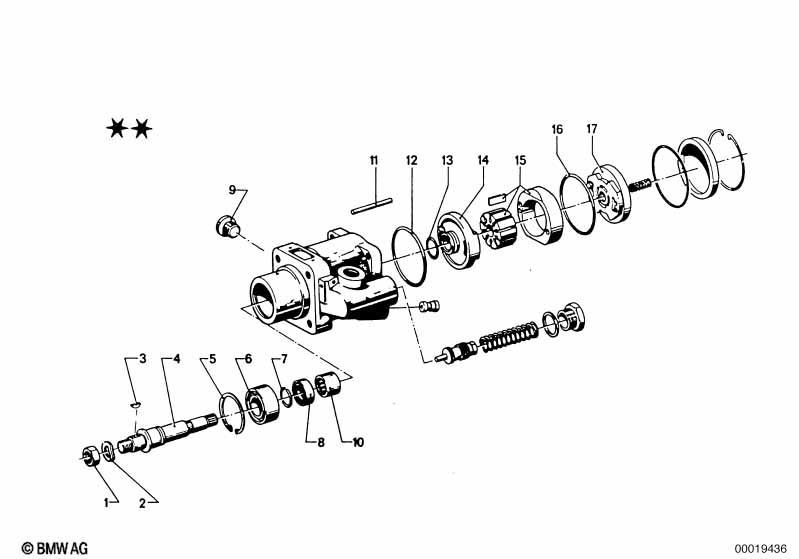

This Hydro steering-vane pump/single parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Set woodruff key 25 | 4X5 | 1 | 07509064297 | ENDED | Shop at ECS Tuning | ||||
| 04 | Drive Shaft | 1 | 32411105144 | $87.05 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lock Ring | 42X1,75 | 1 | 07119935780 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grooved ball bearing | 20,0X42,0X16,0 | 1 | 32411105145 | $37.92 | ENDED | Shop at ECS Tuning | |||
| 07 | Snap ring | 20 | 1 | 07119933441 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 08 | Shaft seal | 1 | 32411105146 | $23.65 | ENDED | Shop at ECS Tuning | ||||
| 09 | Screw plug | 2 | 32411105148 | ENDED | Shop at ECS Tuning | |||||
| 10 | Needle bearing | 17,0X25,0X16,0 | 1 | 32411105147 | $22.33 | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 32411105149 | ENDED | Shop at ECS Tuning | |||||
| 12 | O-ring | 64X2,1MM | 1 | 32411105150 | $13.65 | ENDED | Shop at ECS Tuning | |||
| 13 | O-ring | 1 | 32411105151 | $13.65 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plate,input side | 1 | 32411105152 | ENDED | Shop at ECS Tuning | |||||
| 15 | Rotor set | 1 | 32411105153 | $224.32 | ENDED | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 32411105154 | $4.76 | Shop at ECS Tuning | |||||
| 17 | Plate, cover side | 1 | 32411105155 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
