Hydro steering-oil carrier for BMW 2.5CS-3.0CSL 3.0CS (1973)

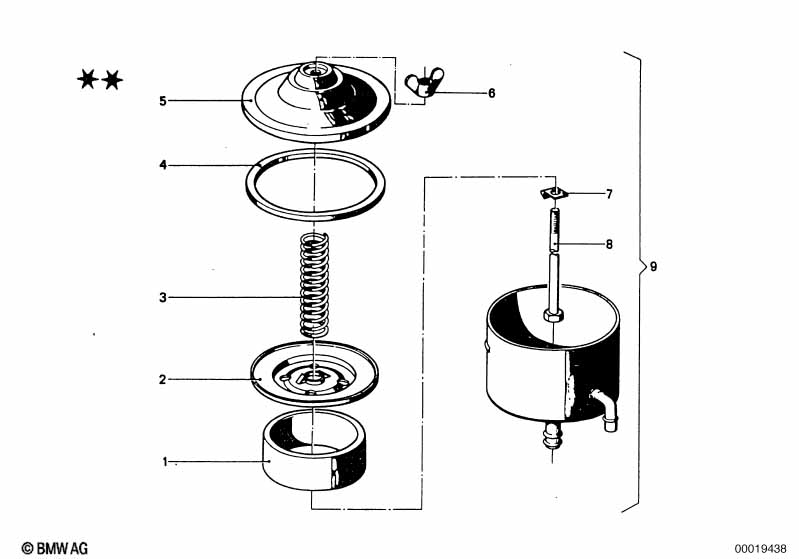

This Hydro steering-oil carrier technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 32411104357 | $33.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 32411105163 | ENDED | Shop at ECS Tuning | |||||
| 03 | Compression spring | 1 | 32411105164 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | 1 | 32411105165 | $29.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| 06 | Ring nut | 1 | 61211233457 | $0.88 | Shop at ECS Tuning | |||||
| 07 | Clip | 1 | 32411105162 | $0.43 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X110 | 1 | 07119912378 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 09 | Oil carrier | 1 | 32411101150 | $117.29 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
