Power steering for BMW 2.5CS-3.0CSL 3.0CS (1975)

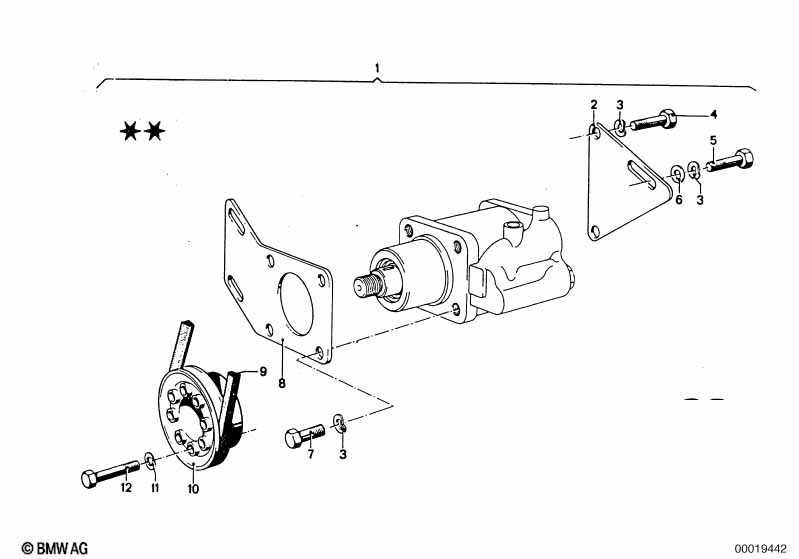

This Power steering technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=No |
|||||||||
| 01 | Retrofit kit, vane pump drive | 1 | 32411259391 | ENDED | Shop at ECS Tuning | |||||
| 02 | Supporting plate | 1 | 32411265846 | $5.07 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Washer | 1 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Supporting plate | 1 | 32411276638 | $43.56 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fan belt | 9,5X888 | 1 | 32421718953 | Shop at ECS Tuning | |||||
| 10 | Pulley | 1 | 32411259343 | ENDED | Shop at ECS Tuning | |||||
| 11 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X45-8.8-ZNS3 | 8 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
