Steering gear for BMW 2500-3.3Li 3.0S (1977)

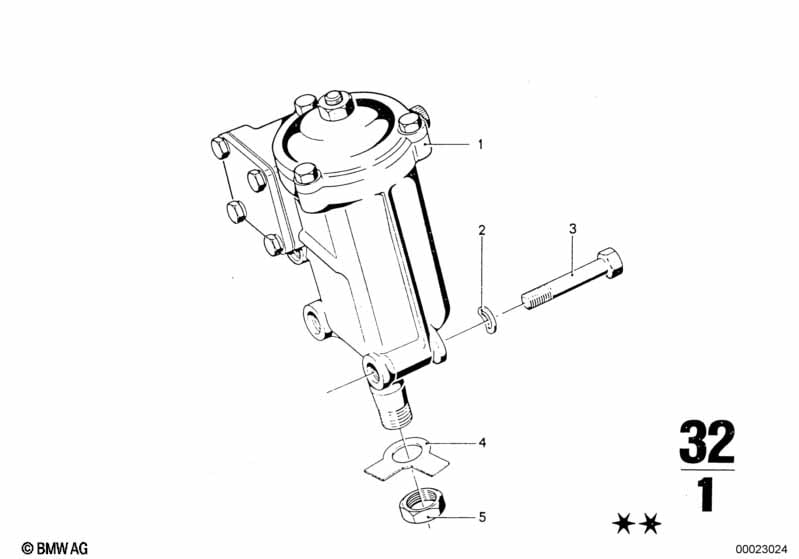

This Steering gear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Steering gear?
- This technical diagram illustrates the Steering gear within the Steering group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904463).
- Which models use the hardware listed in this Steering gear?
- The hardware and components featured in the Steering gear are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Wave washer (07119904463) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering gear assembly?
- Each item in the Steering gear corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904463 for the Steering section.
