Hydro steering-installation kit for BMW 2500-3.3Li 3.0S (1977)

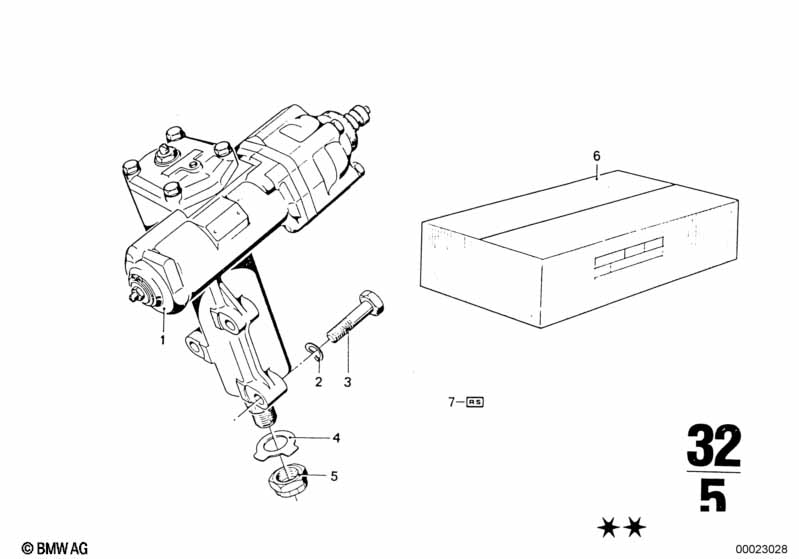

This Hydro steering-installation kit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X70-8.8 ZNS3 | 1 | 07119903068 | $4.63 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M10X45 | 2 | 07119913860 | ENDED | Shop at ECS Tuning | ||||
| 04 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 07 | Repair kit hydro steering box | 1 | 32131106751 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket set hydro steering | 1 | 32131106752 | $44.11 | ENDED | Shop at ECS Tuning |
