Hydro steering box for BMW 2500-3.3Li 3.0SBav (1973)

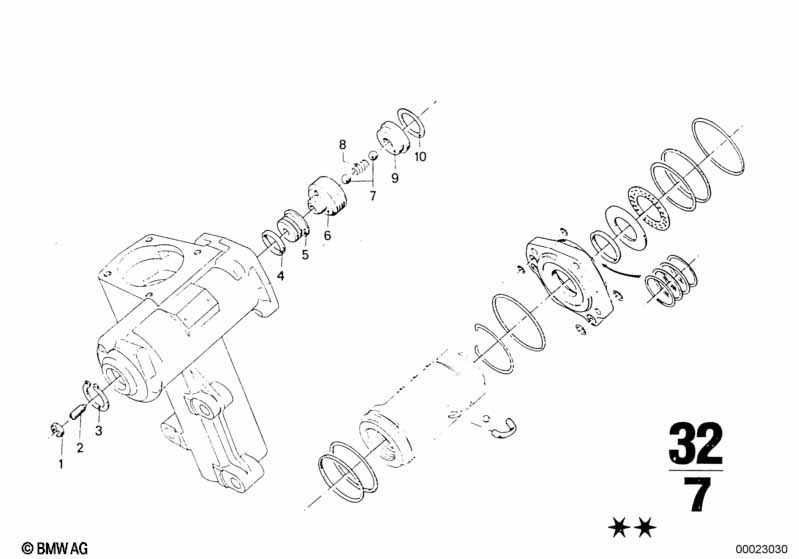

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Hex nut | 1 | 32131106920 | ENDED | Shop at ECS Tuning | |||||
| 02 | Grub screw | M6X16 | 1 | 07119904020 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 24X1,2 | 1 | 07119934160 | $0.20 | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 32131106262 | ENDED | Shop at ECS Tuning | |||||
| 05 | Plug | 1 | 32131106742 | ENDED | Shop at ECS Tuning | |||||
| 06 | Valve washer | 1 | 32131106265 | ENDED | Shop at ECS Tuning | |||||
| 07 | Ball | 9MM III | 2 | 07119986298 | $0.59 | Shop at ECS Tuning | ||||
| 08 | Compression spring | 1 | 32131106276 | ENDED | Shop at ECS Tuning | |||||
| 09 | Valve washer | 1 | 32131104821 | ENDED | Shop at ECS Tuning | |||||
| 10 | Shim | 1,000MM | 1 | 32131106898 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,100MM | 1 | 32131106899 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,200MM | 1 | 32131106900 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,300MM | 1 | 32131106901 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,400MM | 1 | 32131106902 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,500MM | 1 | 32131106903 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,600MM | 1 | 32131106904 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,700MM | 1 | 32131106905 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,800MM | 1 | 32131106906 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,900MM | 1 | 32131106907 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0SBav Hydro steering box?
- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 3.0SBav produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #32131106920).
- Which models use the hardware listed in this Hydro steering box?
- The hardware and components featured in the Hydro steering box are specific to the 2500-3.3Li 3.0SBav produced during 1973. These technical specifications ensure that parts like the Hex nut (32131106920) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering box assembly?
- Each item in the Hydro steering box corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0SBav, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 32131106920 for the Steering section.
