Hydro steering box for BMW 2500-3.3Li 3.0Si (1975)

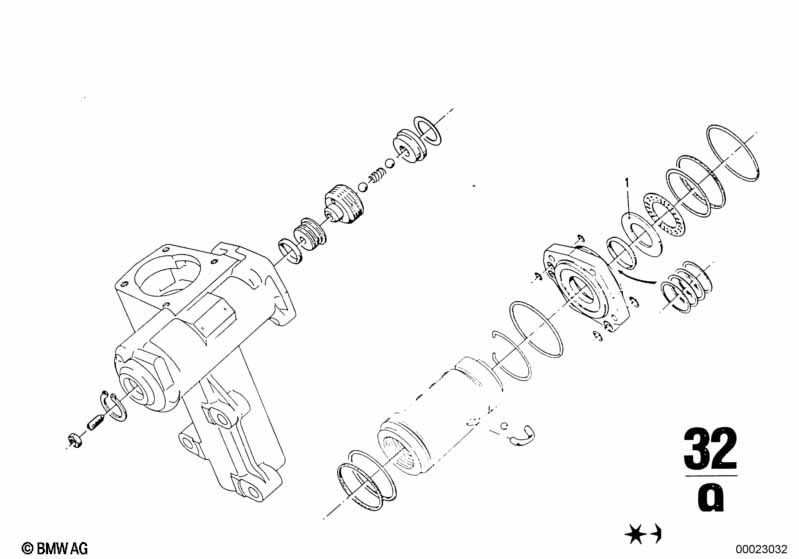

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Shim | 1,950MM | 1 | 32131104844 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,000MM | 1 | 32131104846 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,050MM | 1 | 32131104848 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,100MM | 1 | 32131104850 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,150MM | 1 | 32131104852 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,200MM | 1 | 32131104854 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,910MM | 1 | 32131109210 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,920MM | 1 | 32131109211 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,930MM | 1 | 32131109212 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,940MM | 1 | 32131109213 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,960MM | 1 | 32131109214 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,970MM | 1 | 32131109215 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,980MM | 1 | 32131109216 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 1,990MM | 1 | 32131109217 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,010MM | 1 | 32131109218 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,020MM | 1 | 32131109219 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,030MM | 1 | 32131109220 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,040MM | 1 | 32131109221 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,060MM | 1 | 32131109222 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,070MM | 1 | 32131109223 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,080MM | 1 | 32131109224 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,090MM | 1 | 32131109225 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,110MM | 1 | 32131109226 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,120MM | 1 | 32131109227 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,130MM | 1 | 32131109228 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,140MM | 1 | 32131109229 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,160MM | 1 | 32131109230 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,170MM | 1 | 32131109231 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,180MM | 1 | 32131109232 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,190MM | 1 | 32131109233 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,210MM | 1 | 32131109234 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,220MM | 1 | 32131109235 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,230MM | 1 | 32131109236 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,240MM | 1 | 32131109237 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
