Hydro steering box for BMW 2500-3.3Li 3.0Si (1976)

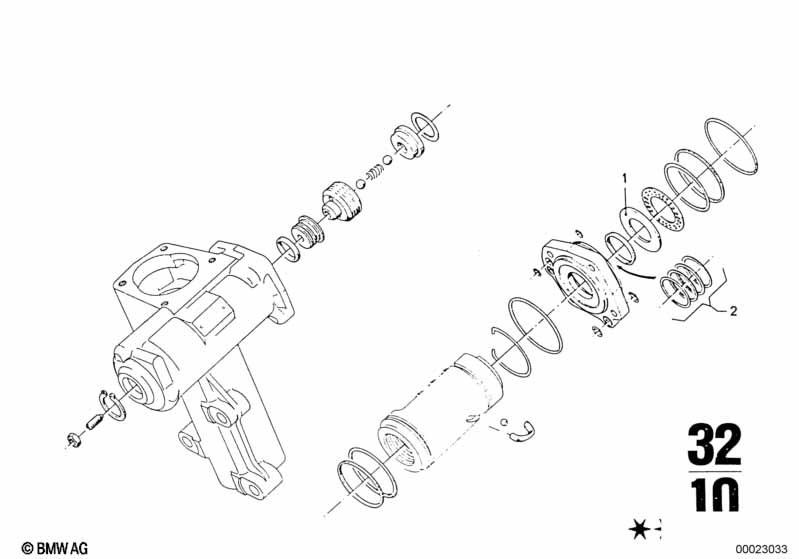

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Shim | 2,250MM | 1 | 32131104856 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,300MM | 1 | 32131104858 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,350MM | 1 | 32131104860 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,400MM | 1 | 32131104862 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,260MM | 1 | 32131109238 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,270MM | 1 | 32131109239 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,280MM | 1 | 32131109240 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,290MM | 1 | 32131109241 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,310MM | 1 | 32131109242 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,320MM | 1 | 32131109243 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,330MM | 1 | 32131109244 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,340MM | 1 | 32131109245 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,360MM | 1 | 32131109246 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,370MM | 1 | 32131109247 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,380MM | 1 | 32131109248 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 2,390MM | 1 | 32131109249 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stop disk | X | 32131104867 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
