Hydro steering box for BMW 2500-3.3Li 3.0Si (1973)

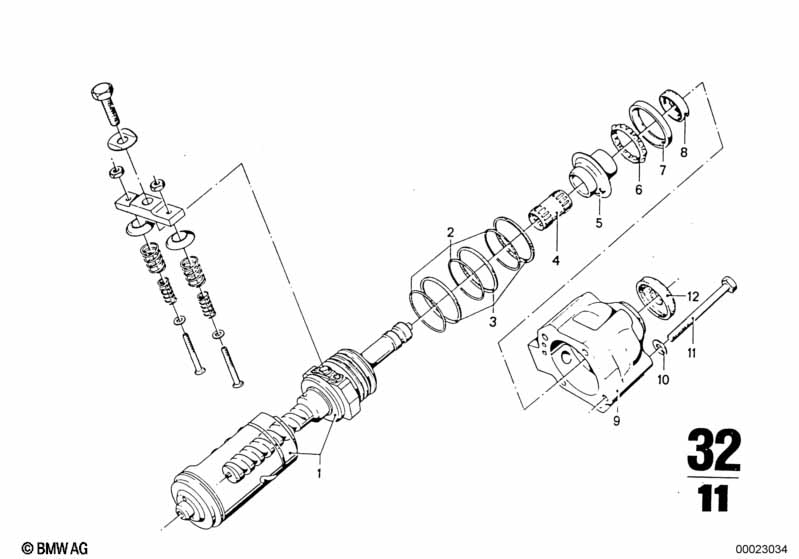

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 01 | Worm with piston | 1 | 07/1969 | 02/1977 | 32131106743 | ENDED | Shop at ECS Tuning | |||
| 02 | O-ring | 3 | 32131104790 | $1.71 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 3 | 32131104789 | $3.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Needle cage | 0,000-0,002 MM | 1 | 32131104791 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 04 | Needle cage | 0,004-0,006 MM | 1 | 32131104793 | ENDED | Shop at ECS Tuning | ||||
| 04 | Needle cage | 0,006-0,008 MM | 1 | 32131104794 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide ring | D=28,000 MM | 1 | 32131104795 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide ring | D=28,015 MM | 1 | 32131104796 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bearing ball cage | 1 | 32131104801 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 07 | Guide ring | 1 | 32131104835 | $27.62 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shaft seal | 1 | 32131128686 | $12.81 | ENDED | Shop at ECS Tuning | ||||
| 09 | Valve housing | 1 | 07/1969 | 02/1977 | 32131106750 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 4 | 32131104836 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X80 | 4 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 12 | Protection cap | 1 | 32131126931 | $2.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Hydro steering box?
- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Worm with piston (Part #32131106743).
- Which models use the hardware listed in this Hydro steering box?
- The hardware and components featured in the Hydro steering box are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Worm with piston (32131106743) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering box assembly?
- Each item in the Hydro steering box corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Worm with piston by locating its position on the schematic, which then links to the official BMW part number 32131106743 for the Steering section.
