Hydro steering box for BMW 2500-3.3Li 2800 (1970)

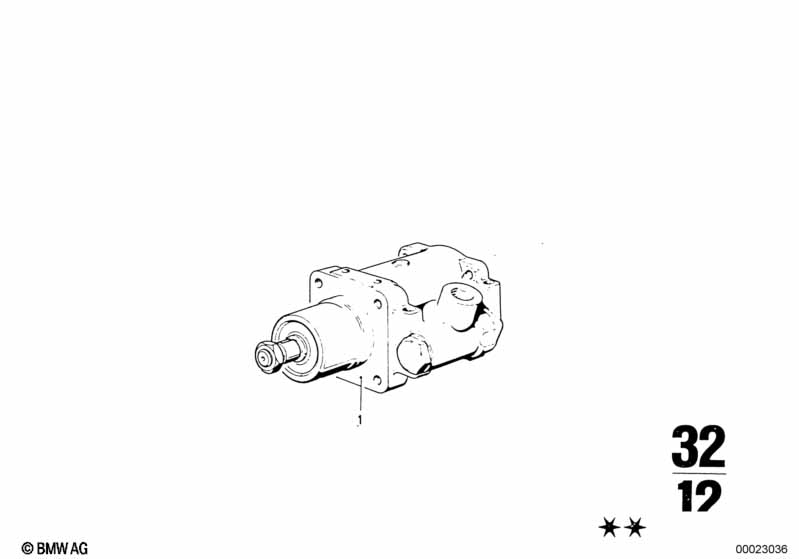

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Vane pump | ZF | 1 | 32411123634 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Vane pump | ZF | 1 | 32411127636 | $523.61 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connector | L FORM | X | 32411117545 | $26.23 | Shop at ECS Tuning | ||||
| -- | Pressure hose assy | X | 32411117565 | $122.86 | ENDED | Shop at ECS Tuning | ||||
| -- | Pressure hose assy | X | 32411117566 | $96.17 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
