Hydro steering box for BMW 2500-3.3Li 2500 (1970)
This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Oil carrier | 1 | 32411101150 | $117.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Oil filter | 1 | 32411104357 | $33.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 32411105163 | ENDED | Shop at ECS Tuning | |||||
| 04 | Compression spring | 1 | 32411105164 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 1 | 32411105165 | $29.83 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| 07 | Ring nut | 1 | 61211233457 | $0.88 | Shop at ECS Tuning | |||||
| 08 | Clip | 1 | 32411105162 | $0.43 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X110 | 1 | 07119912378 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 10 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 12 | Holder | 1 | 32411115962 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 15 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-8-ZNS3 | 1 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X12 | 1 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Hydro steering box?

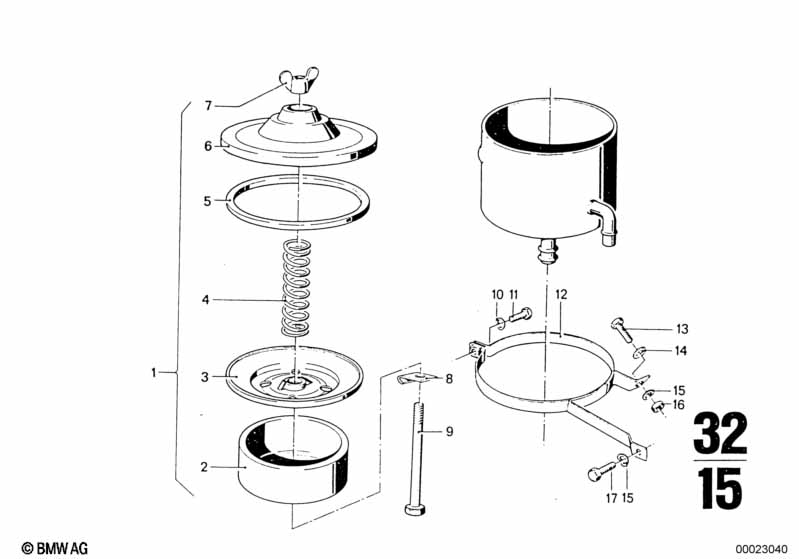

- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 2500 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #32411101150).
