Hydro steering box for BMW 2500-3.3Li 3.0Si (1976)

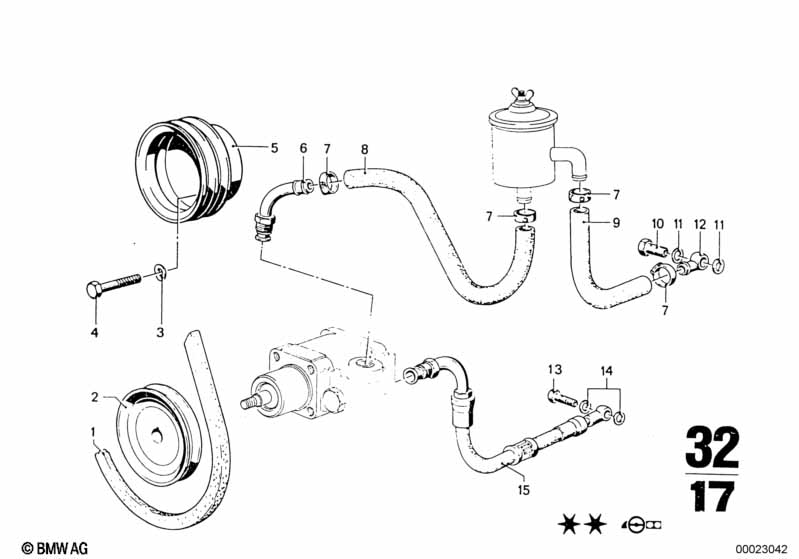

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Fan belt | 9,5X900 | 1 | 09/1973 | 02/1977 | 32421711067 | Shop at ECS Tuning | |||
| 02 | Pulley | 1 | 09/1973 | 02/1977 | 32411258275 | $63.70 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Connector | S FORM | 1 | 32411121531 | $39.90 | ENDED | Shop at ECS Tuning | |||
| 06 | Connector | L FORM | 1 | 09/1973 | 02/1977 | 32411117545 | $26.23 | Shop at ECS Tuning | ||
| 07 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hose | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 09 | Hose | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 10 | Hollow bolt | M18X32 | 1 | 32411117183 | $7.53 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket ring | A18X22-CU | 2 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Connector | 1 | 32411124690 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Pressure hose assy | 1 | 32411117565 | $122.86 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
