Steering damper for BMW 2500-3.3Li 3.0S (1977)

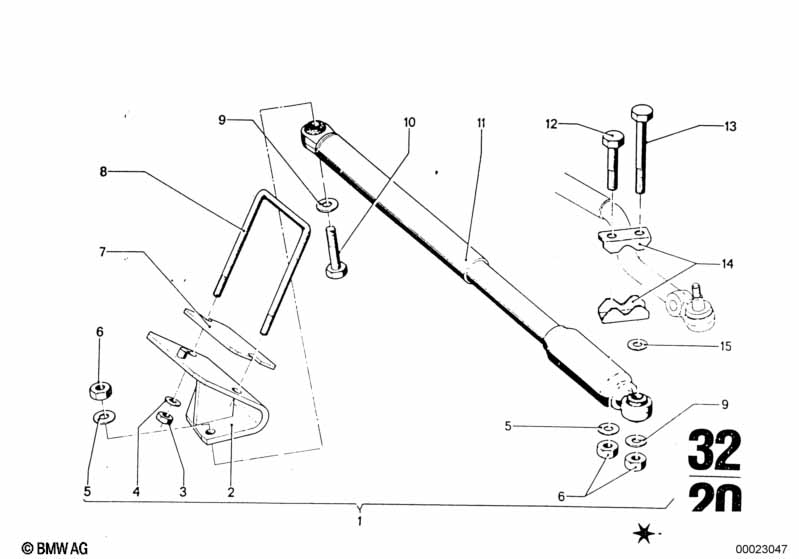

This Steering damper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set steering damper | 1 | 32211108317 | ENDED | Shop at ECS Tuning | |||||
| 02 | Supporting bracket | 1 | 32211108465 | ENDED | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M10 | 3 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Plate | 1 | 32211108305 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bow | 1 | 32211106674 | ENDED | Shop at ECS Tuning | |||||
| 09 | Washer | 10-200 ZNS3 | 2 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M10X45 | 1 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 11 | Steering damper | 1 | 32211106799 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M10X50 | 1 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M10X80 | 1 | 31111136251 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 2 | 32211107988 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
